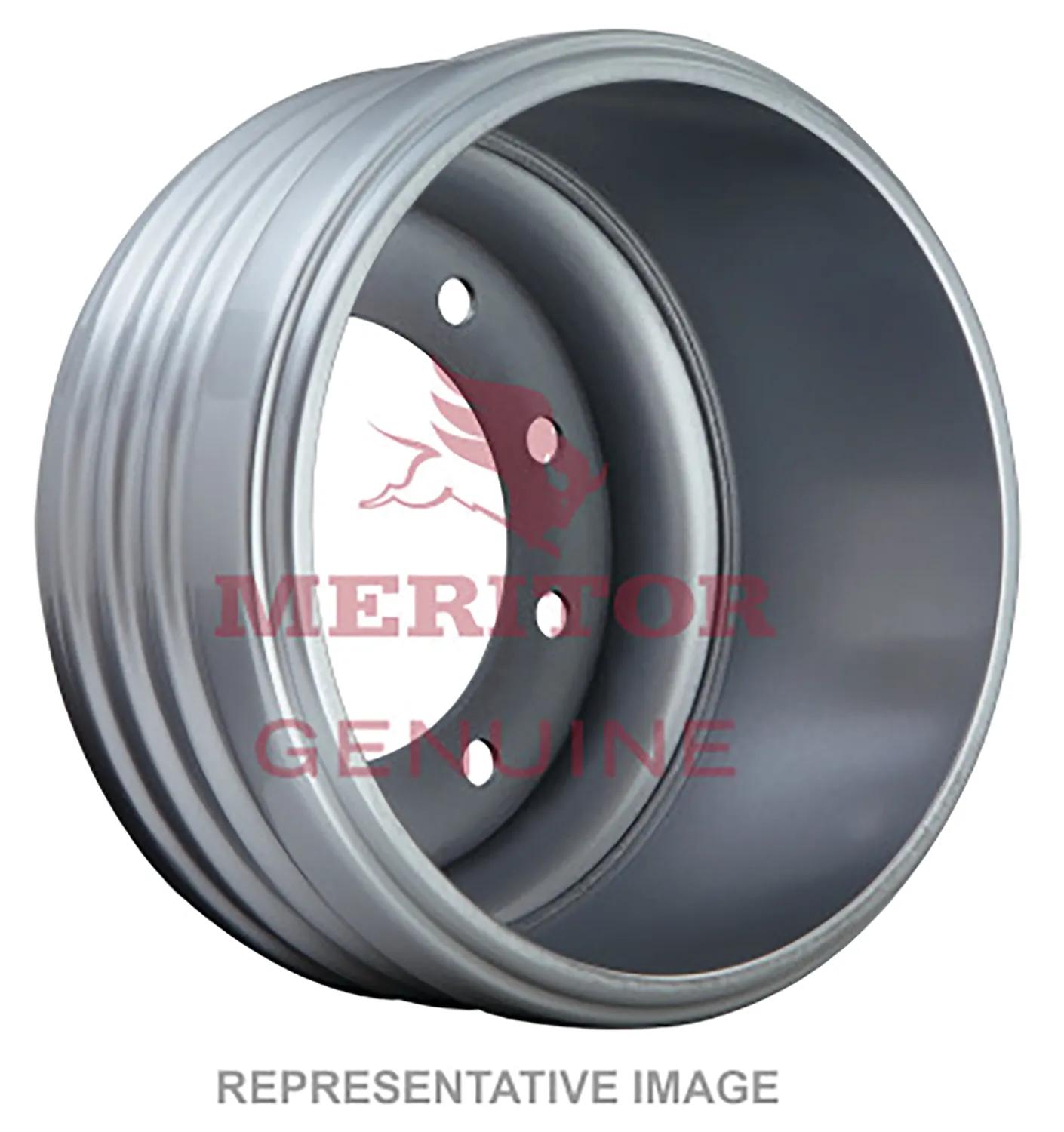

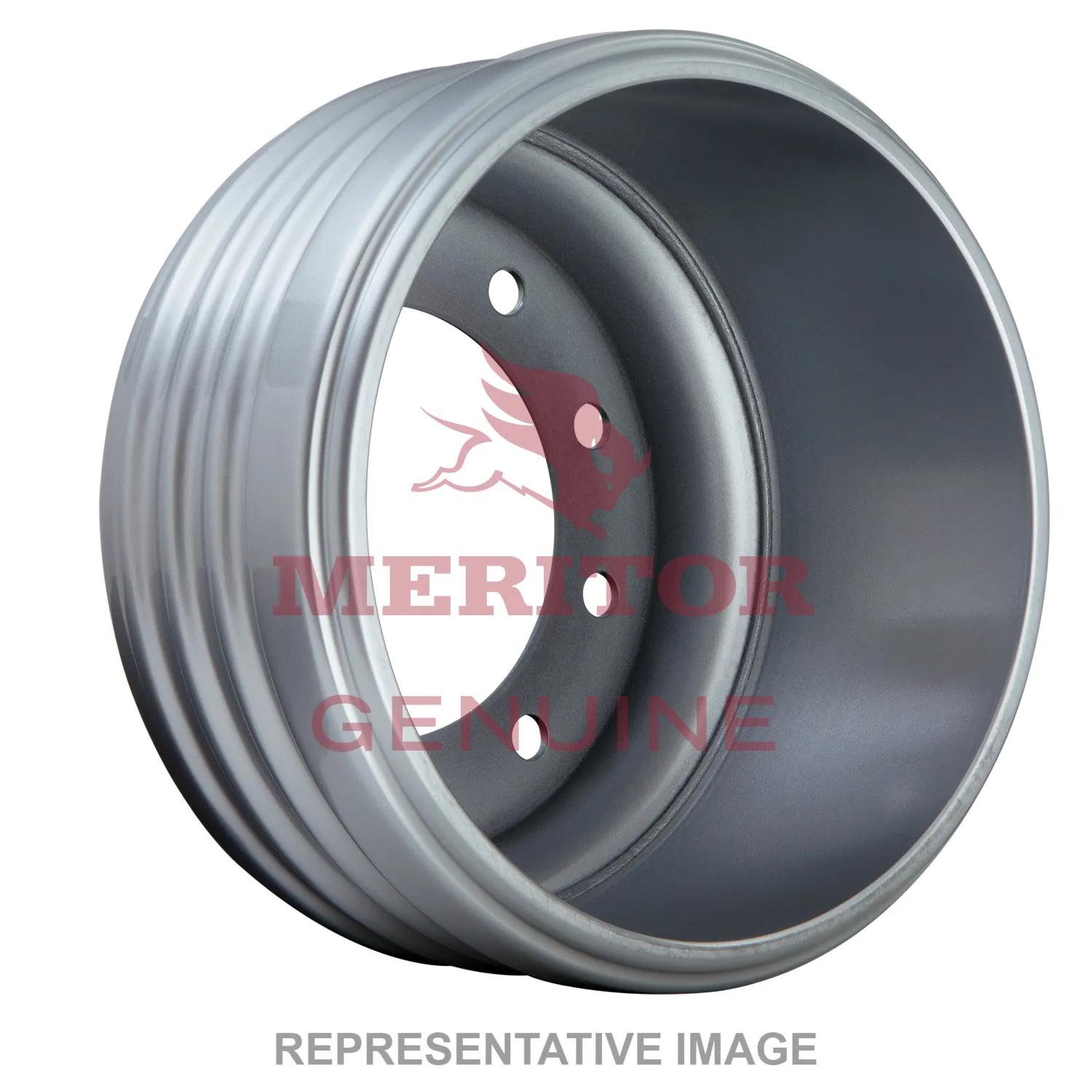

Brake Drum, 15 in x 8-5/8 in, 10 holes, (91 lb)
#ROC53123601002
Features & Benefits
- Provides consistent braking performance under heavy loads
- Precisely machined for smooth and reliable braking operation
- Designed to OE specifications for a perfect fit and function
- Minimizes brake fade for increased safety during sudden stops
- Durable cast iron construction ensures long-lasting performance
- Resistant to heat, ideal for high-temperature braking conditions
- Reduces noise and vibrations for a comfortable driving experience
- Corrosion-resistant coating for enhanced longevity and aesthetics
Specifications
| Axle Capacity (lb) | 44093 kg (20000 lbs) |
| Back Plate Thickness | 1/2 in |
| Balanced or Unbalanced | Balanced |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 8-5/8 in |
| Brake Size | 15 in x 8-5/8 in |
| Brake Surface Diameter | 15 in |
| Brake Surface Width | 9-7/64 in |
| Bridge Width | 8-5/8 in |
| Depth | 11-29/32 in (30.25 cm) |
| Drum Mounting | Outboard |
| Drum Type | BDC |
| Flange Thickness | 1/2 in |
| Height | 12 in |
| Hole Size | 1 in |
| Maximum Diameter | 15-1/8 in |
| Overall Depth | 11-7/16 in |
| Overall Diameter | 18-15/64 in |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Sidewall Offset (N) | 2-19/64 in |
| Squealer Band Width (K) | 53/64 in |
| Type | X30 Balanced |
| VMRS Code | 013-017-006 |
| Weight | 91 to 95 lbs |
| Weight (lbs) | 41.28 kg (91 lb) |
| Wheel Type | Disc |
| Width | 8-5/8 in |
Interchanges & Equivalent parts:
| 53-123601 |
| 8235-53123601002 |
| ATI53123601002 |
| DW53123601 |
| HWI 91725B |
| TDA 53 123601 002 |
| TDA53123601002 |
| 61991F |
| 91725B |
