Brake Drum, 15 in x 8-5/8 in, 8 holes, (105 lb)
#GUN3744AX
Product Overview
This 15 in x 8-5/8 in low-profile brake drum is designed for heavy-duty applications. It features 8 bolt holes, an outboard mounting, and a durable cast construction for reliable braking performance.
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Back Plate Thickness | 1/2 in |
| Bolt Circle Diameter | 10-53/64 in |
| Bolt Hole (Number) | 8 |
| Brake Shoe Width | 8-5/8 in |
| Brake Size | 15 in x 8-5/8 in |
| Brake Surface Diameter | 15 in |
| Brake Surface Width | 9-19/64 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BDC |
| Hole Size | 1 in |
| Maximum Diameter | 15-1/8 in |
| Notes | Low profile brake drum. |
| Overall Depth | 11-29/32 in |
| Overall Diameter | 18-15/64 in |
| Packaging | Individual / Bulk |
| Pilot Diameter | 9 in (22.86 cm) |

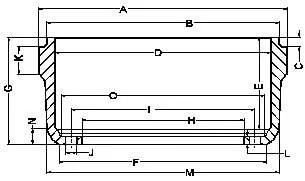

| Sidewall Offset (N) | 2-19/64 in |
| Squealer Band Width (K) | 53/64 in |
| VMRS Code | 013-017-006 |
| Weight | 101 to 105 lbs |
| Weight (lbs) | 48.19 kg (105 lb) |
| Wheel Type | Disc |
| Width | 8-5/8 in |
