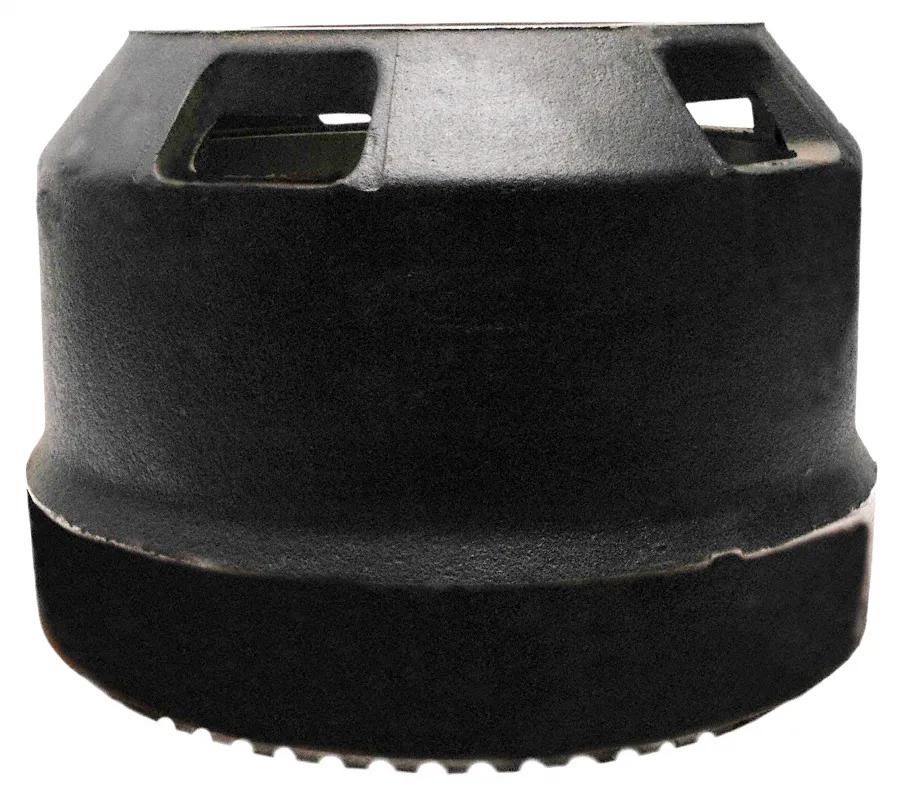

Brake Drum, 16-1/2 in x 10 in, 10 holes, (169 lb)
#GUN3475
Product Overview
This 16.5 in x 10 in brake drum is designed for heavy-duty applications. It features 10 bolt holes, an outboard mounting, and a durable cast construction for reliable braking performance in demanding conditions.
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 10 in |
| Brake Size | 16-1/2 in x 10 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 10-1/2 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BBI |
| Dust Shield Recess Depth (C) | 35/64 in |
| Dust Shield Recess Diameter (B) | 17-23/32 in |
| Hole Size | 13/16 in |
| Maximum Diameter | 16-53/64 in |
| Overall Depth | 13-11/32 in |
| Overall Diameter | 19 in |
| Packaging | Individual / Bulk |
| Pilot Diameter | 8-35/64 in (21.71 cm) |
| Sidewall Offset (N) | 2-15/16 in |
| Squealer Band Width (K) | 3-19/64 in |
| VMRS Code | 013-017-006 |
| Weight | More than 141 lbs |
| Weight (lbs) | 76.66 kg (169 lb) |
| Wheel Type | Disc |
Interchanges & Equivalent parts:
| U00X60716 |
| X60716 |
