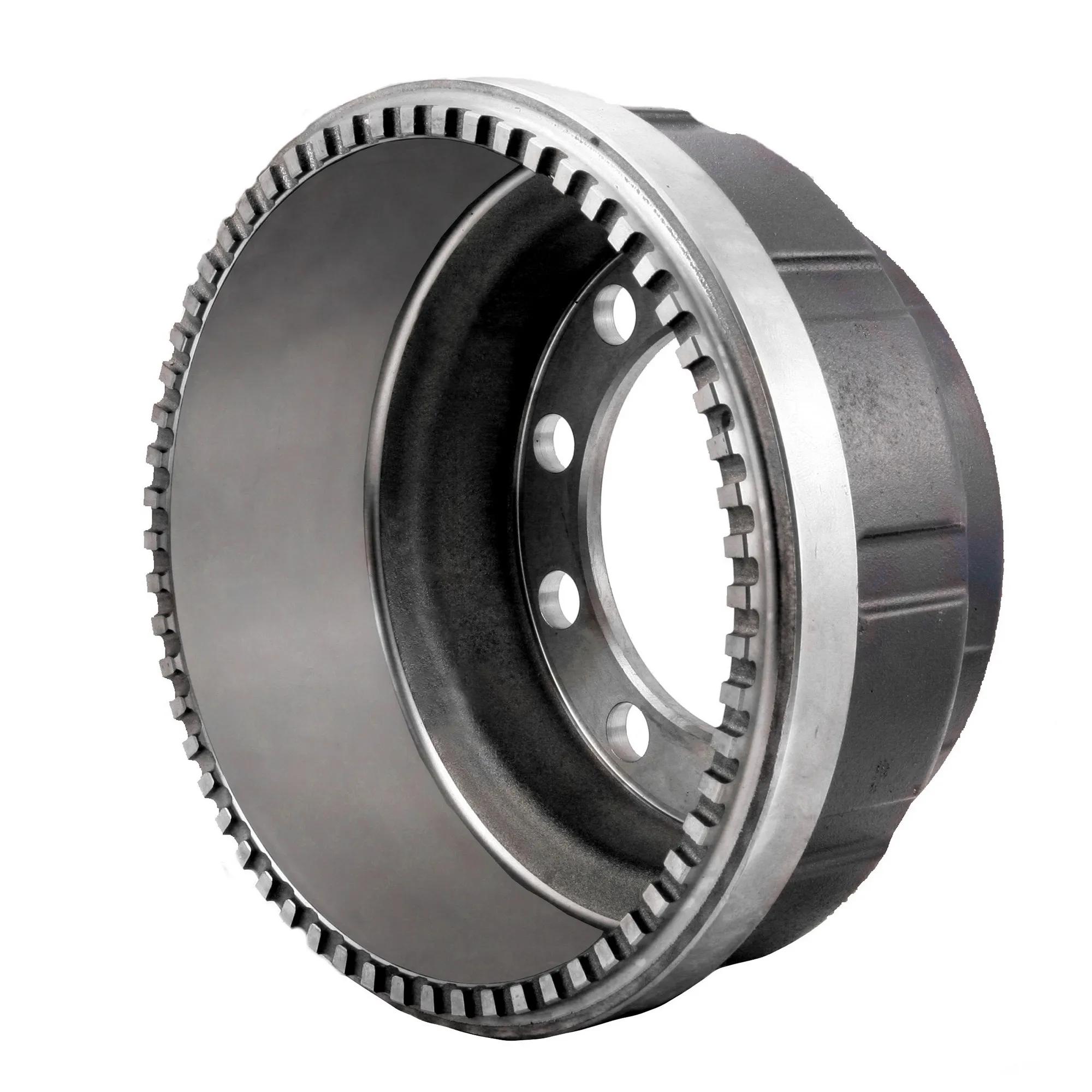

Brake Drum, 16-1/2 in x 5 in, 10 holes, (102,71 lb)
#WEB65175B
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 5/8 in (1.59 cm) |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 5 in (12.7 cm) |
| Brake Size | 16-1/2 in x 5 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 5-11/16 in (14.45 cm) |
| Drum Mounting | Outboard |
| Hole Size | 1-5/16 in (3.34 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 9-3/8 in (23.82 cm) |
| Pilot Diameter | 9 in (22.86 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 101 to 105 lbs |
| Weight (lbs) | 46.59 kg (102.71 lb) |
| Width | 5 in (12.7 cm) |
Interchanges & Equivalent parts:
| 65175F |
| 65175 |
