Brake Drum, 16-1/2 in x 5 in, 10 holes, (108 lb)
#GUN2920X
Product Overview
This 16.5 in x 5 in brake drum is manufactured to meet or exceed OEM specifications. It features 10 bolt holes, an outboard mounting, and is made from high-quality materials for durability and reliable braking performance.
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications

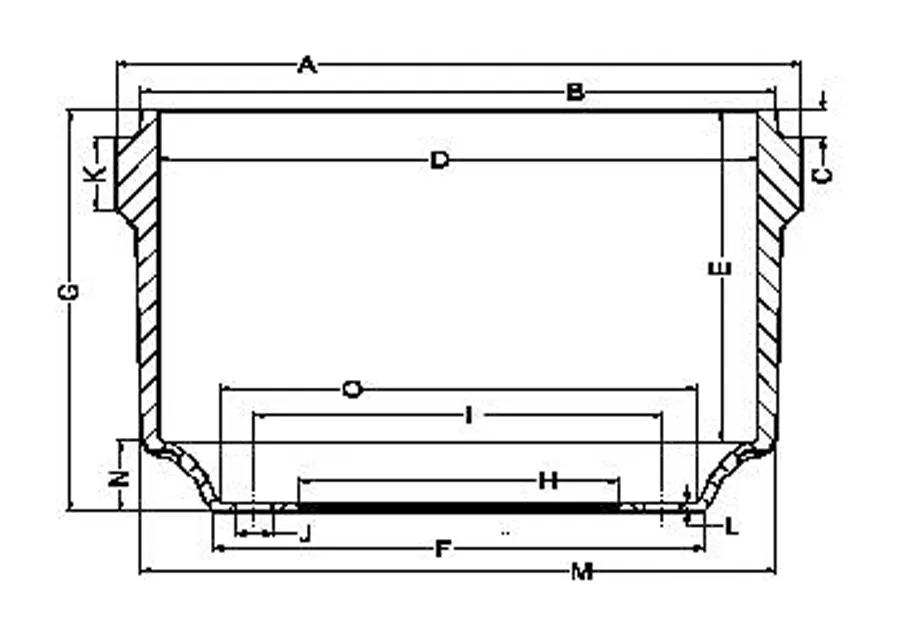

| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 5 in |
| Brake Size | 16-1/2 in x 5 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 5-3/8 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 37/64 in |
| Dust Shield Recess Diameter (B) | 17-5/8 in |
| Hole Size | 1-1/4 in |
| Maximum Diameter | 16-5/8 in |
| Overall Depth | 9-5/32 in |
| Overall Diameter | 19-1/32 in |
| Packaging | Individual / Bulk |
| Pilot Diameter | 9 in (22.86 cm) |
| Sidewall Offset (N) | 3-35/64 in |
| Squealer Band Width (K) | 1-41/64 in |
| VMRS Code | 013-017-006 |
| Weight | 106 to 110 lbs |
| Weight (lbs) | 49.57 kg (108 lb) |
| Wheel Type | Disc |
Interchanges & Equivalent parts:
| 13690054 |
| 65651 |
| U00X60722 |
| WEB65651 |
| X60722 |
