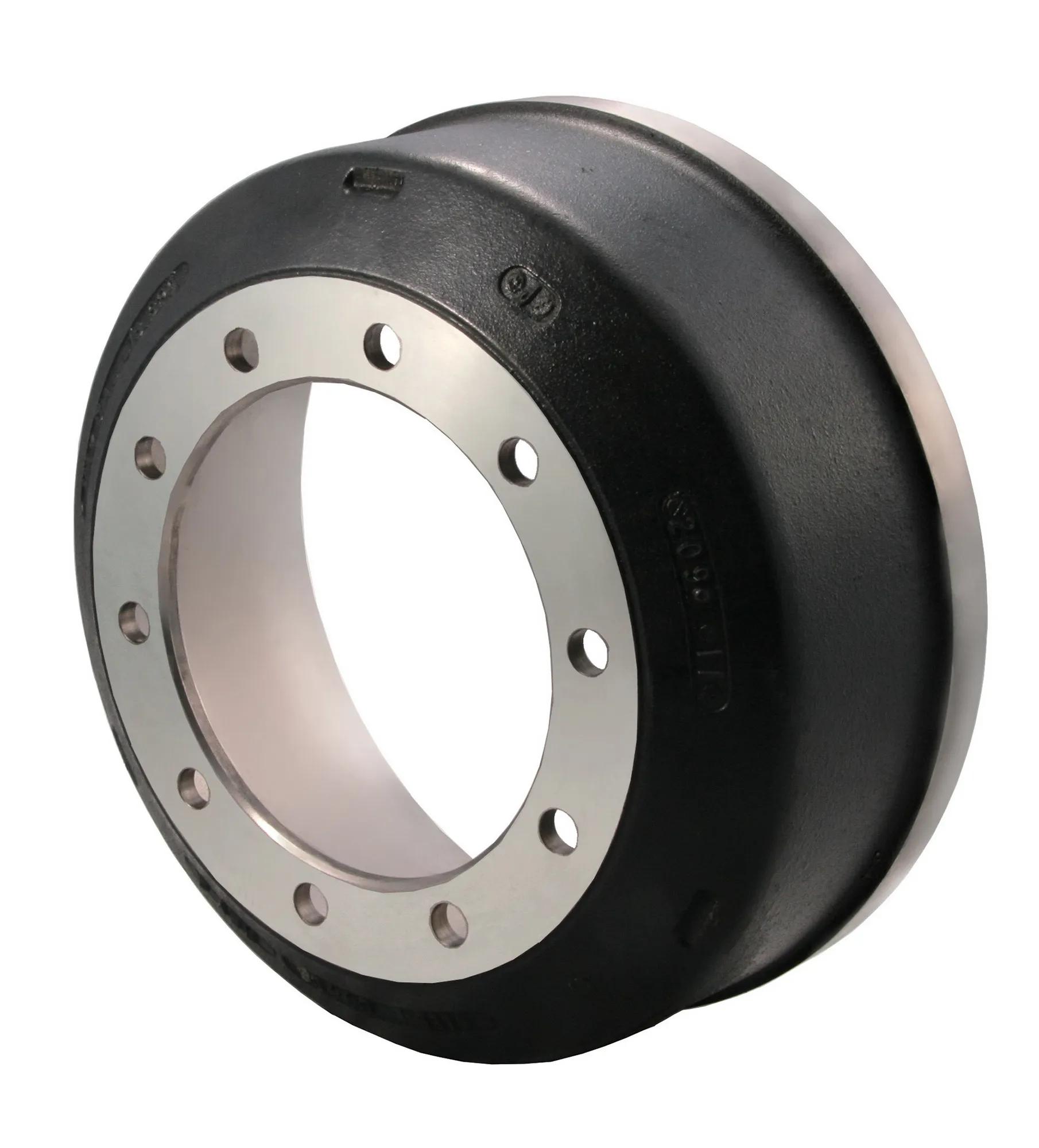

Brake Drum, 16-1/2 in x 5 in, 10 holes, (84,28 lb)
#WEB64468F
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 7/16 in |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 5 in |
| Brake Size | 16-1/2 in x 5 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 6-1/4 in |
| Drum Mounting | Inboard |
| Hole Size | 13/16 in |
| Maximum Diameter | 16-5/8 in |
| Overall Depth | 7-7/8 in |
| Pilot Diameter | 9-7/16 in (23.98 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 81 to 85 lbs |
| Weight (lbs) | 38.23 kg (84.28 lb) |
| Width | 6 in |
Interchanges & Equivalent parts:
| 97069 |
| 64468 |
| 64468B |
