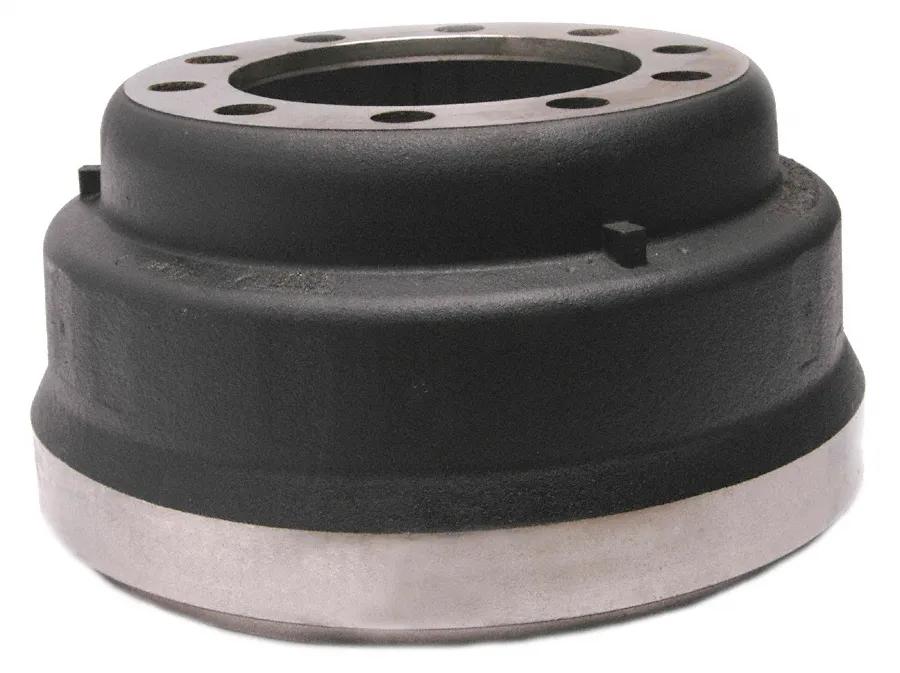

Brake Drum, 16-1/2 in x 6 in, 10 holes, (109 lb)
#GUN3437X
Product Overview
This 16.5 in x 6 in brake drum is designed for heavy-duty truck axles. It features 10 bolt holes, an outboard mounting, and a durable cast construction for reliable braking performance.
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 6 in |
| Brake Size | 16-1/2 in x 6 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 6-13/32 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 47/64 in |
| Dust Shield Recess Diameter (B) | 17-1/2 in |
| Hole Size | 1-1/4 in |
| Maximum Diameter | 16-5/8 in |
| Notes | Special Aluminum Disc Wheel Clearance |
| Overall Depth | 9-47/64 in |
| Overall Diameter | 18-13/16 in |
| Packaging | Individual / Bulk |
| Pilot Diameter | 9 in |
| Sidewall Offset (N) | 3-25/64 in |
| Squealer Band Width (K) | 1-29/64 in |
| VMRS Code | 013-017-006 |
| Weight | 50.03 kg |
| Weight (lbs) | 50.03 kg (109 lb) |
| Wheel Type | Disc |
Interchanges & Equivalent parts:
| 3437 |
| 54225-018 |
| 593099C1 |
| U00X60841 |
| X60841 |
