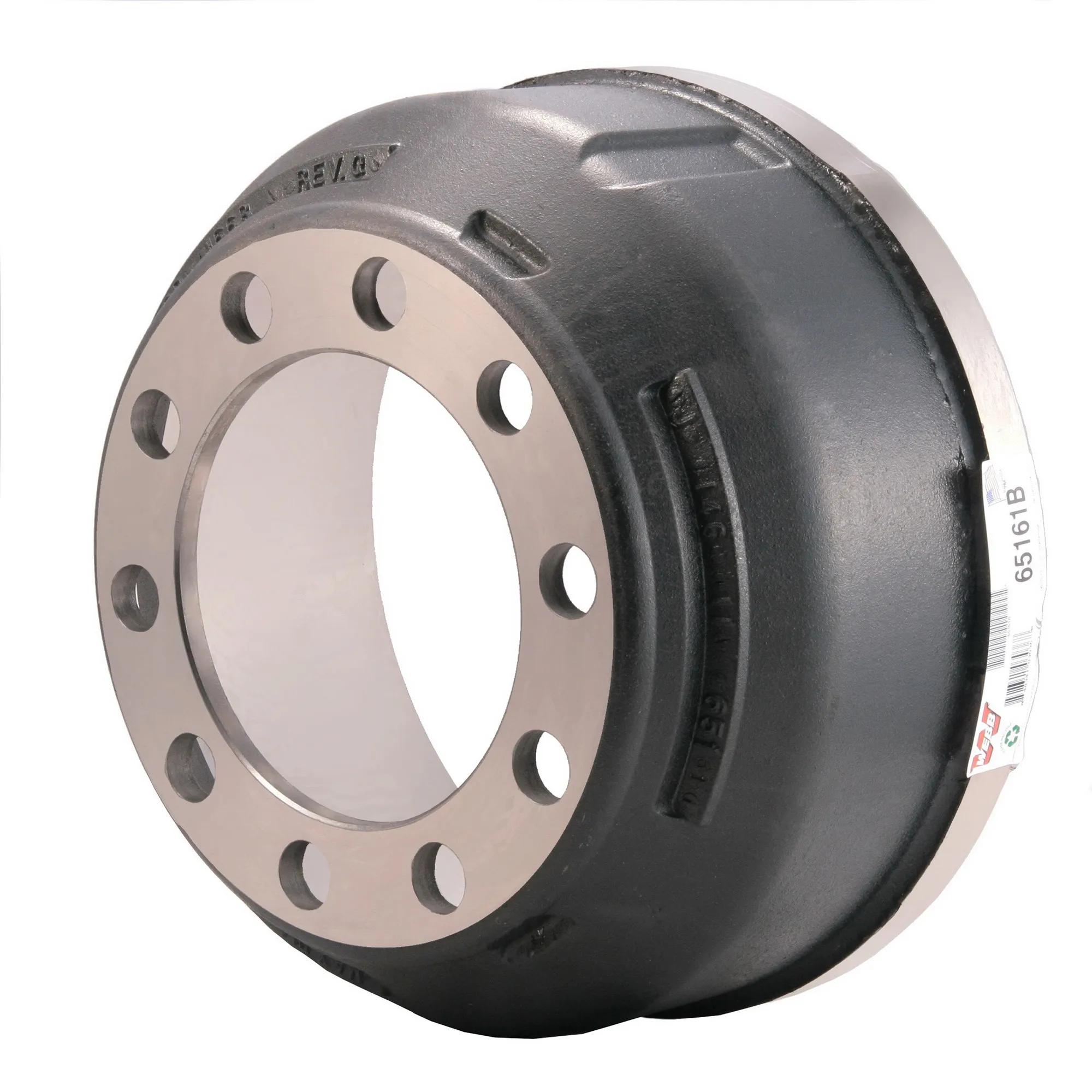

Brake Drum, 16-1/2 in x 6 in, 10 holes, (114,1 lb)
#WEB65161B20
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 5/8 in |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 6 in |
| Brake Size | 16-1/2 in x 6 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 6-3/8 in |
| Drum Mounting | Outboard |
| Hole Size | 1-5/16 in |
| Maximum Diameter | 16-5/8 in |
| Overall Depth | 9-3/8 in |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | 111 to 115 lbs |
| Weight (lbs) | 51.76 kg (114.1 lb) |
| Width | 6 in |
