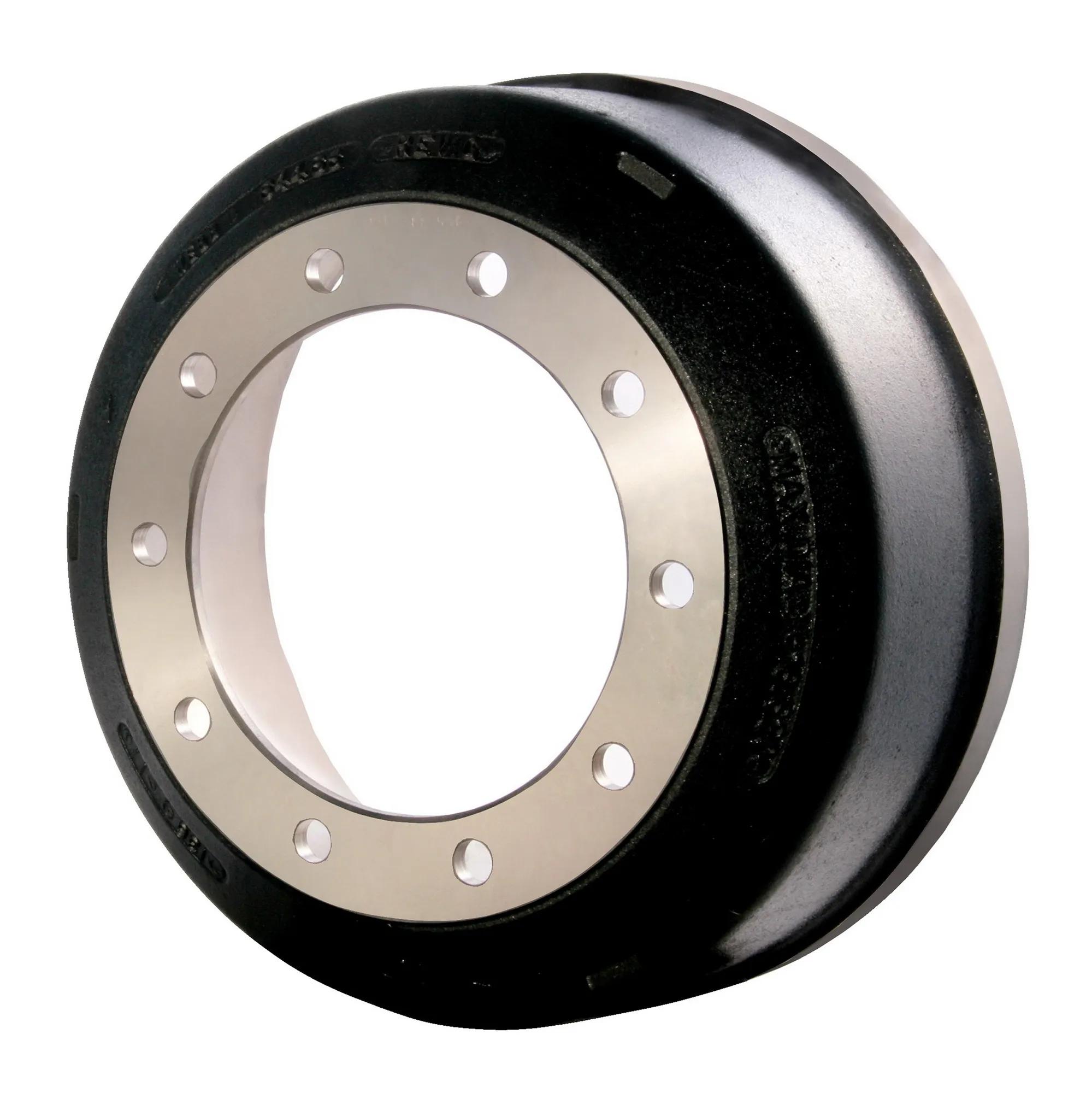

Brake Drum, 16-1/2 in x 6 in, 10 holes, (85,14 lb)
#WEB64466F
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
Back Plate Thickness | 7/16 in (1.12 cm) |
Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
Bolt Hole (Number) | 10 |
Brake Shoe Width | 6 in (15.24 cm) |
Brake Size | 16-1/2 in x 6 in |
Brake Surface Diameter | 16-1/2 in (41.91 cm) |
Brake Surface Width | 6-3/8 in (16.2 cm) |
Drum Mounting | Inboard |
Hole Size | 13/16 in (2.07 cm) |
Overall Depth | 8 in (20.32 cm) |
Pilot Diameter | 9-3/8 in (23.82 cm) |
Type | Cast |
Weight | 81 to 85 lbs |
Weight (lbs) | 38.62 kg (85.14 lb) |
Width | 6 in (15.24 cm) |
Maximum Diameter | 16-5/8 in (42.23 cm) |
