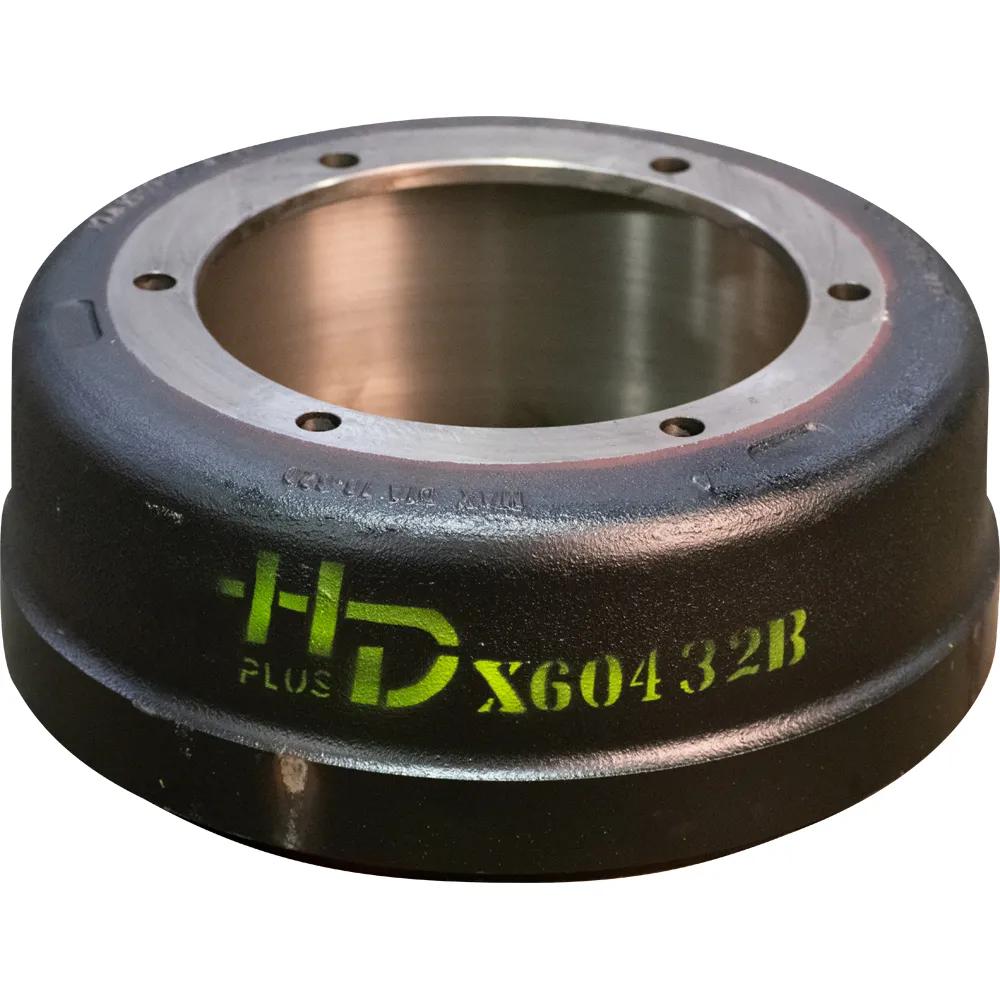

Brake Drum, 16-1/2 in x 6 in, 6 holes
#DRMX60432B
Product Overview
This 16.5 in x 6 in balanced brake drum is designed for front or rear truck axles and transit vehicles. It features 6 bolt holes, an inboard design, and a durable cast construction for reliable braking performance.
Features & Benefits
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
Specifications
| Application | Front / Rear Truck Axles. Transit |
| Back Plate Thickness | 1/2 in |
| Balanced or Unbalanced | Balanced |
| Bolt Circle Diameter | 12-3/4 in |
| Bolt Hole (Number) | 6 |
| Brake Shoe Width | 6 in |
| Brake Size | 16-1/2 in x 6 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 6-5/16 in |
| Drum Mounting | Inboard |
| Drum Type | AAA |
| Dust Shield Recess Depth (C) | 9/16 in |
| Hole Size | 25/32 in |
| Maximum Diameter | 16-5/8 in |
| Notes | Machine to Balanced |
| Overall Depth | 7-7/16 in |
| Overall Diameter | 18-7/8 in |
| Packaging | Individual / Bulk |
| Pilot Diameter | 11-1/4 in (28.58 cm) |
| Sidewall Offset (N) | 1-1/32 in |
| Squealer Band Width (K) | 1-63/64 in |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Wheel Type | Spoke |
| Width | 6 in |
Interchanges & Equivalent parts:
| 100229 |
| 100229B |
| 3022B |
| 3022BX |
| 534882C2 |
| 65226B |
| U00X60432 |
| X60432 |
| 54210018 |
