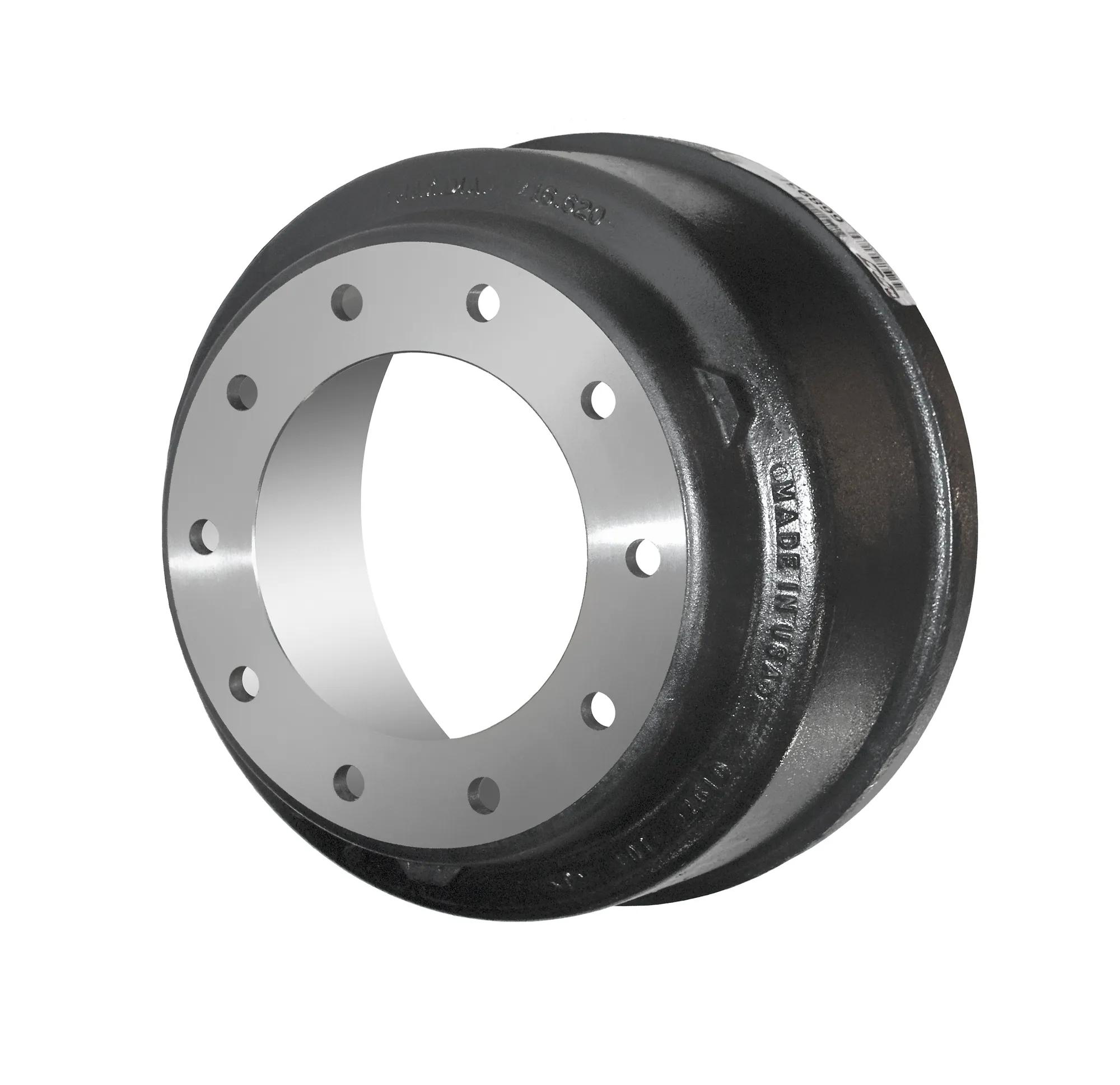

Brake Drum, 16-1/2 in x 7 in, 10 holes, (112,25 lb)
#WEB66892F
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 1/2 in (1.27 cm) |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 7-3/8 in (18.74 cm) |
| Drum Mounting | Outboard |
| Hole Size | 13/16 in (2.07 cm) |
| Overall Depth | 10-1/4 in (26.04 cm) |
| Pilot Diameter | 8-17/32 in (21.67 cm) |
| Type | Cast |
| Weight | 111 to 115 lbs |
| Weight (lbs) | 50.92 kg (112.25 lb) |
| Width | 7 in (17.78 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
