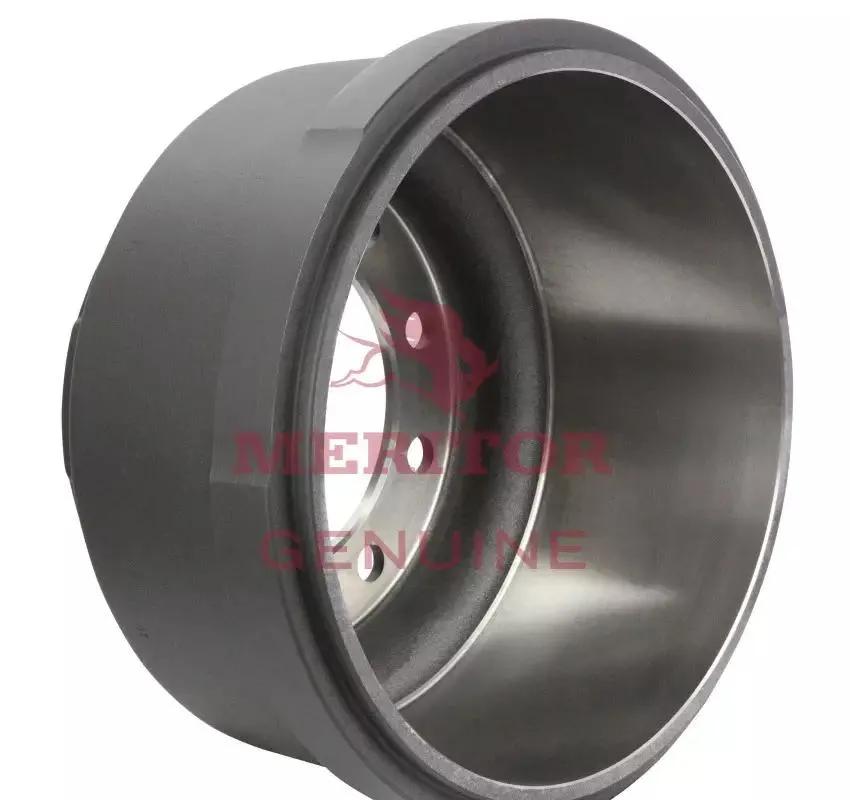

Brake Drum, 16-1/2 in x 7 in, 10 holes, (113,37 lb)
#ROC85123207002
Specifications
| Application | Truck Rear Axles. Trailer Axles |
| Axle Capacity (lb) | 57321 kg (26000 lbs) |
| Back Plate Thickness | 31/64 in (1.23 cm) |
| Balanced or Unbalanced | Balanced |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Flat | 8-25/32 in (22.31 cm) |
| Brake Surface Width | 7-29/64 in (18.94 cm) |
| Bridge Width | 7 in (17,78 cm) |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BEA |
| Dust Shield Recess Depth (C) | 21/32 in (1.67 cm) |
| Dust Shield Recess Diameter (B) | 17-1/2 in (44.45 cm) |
| Flange Thickness | 31/64 in (1.23 cm) |
| Height | 12 in (30.48 cm) |
| Hole Size | 1 in (2.54 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 10-35/64 in (26.79 cm) |
| Overall Diameter | 18-7/8 in (47.95 cm) |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Sidewall Offset (N) | 2-41/64 in (6.71 cm) |
| Squealer Band Width (K) | 1-59/64 in (4.89 cm) |
| Type | Cast Balanced |
| VMRS Code | 013-017-006 |
| Weight | 111 to 115 lbs |
| Weight (lbs) | 52.03 kg (113.37 lb) |
| Wheel Type | Disc |
| Width | 7 in (17.78 cm) |
Interchanges & Equivalent parts:
| 0043877 |
| 1000-BD16702 |
| 151.3600AX |
| 19149692 |
| 3099723 |
| 60001018 |
| 82-32833-007 |
| 8235-85123207002 |
| 85-123207 |
| 85123207002-RI |
| ABP N42A10009830 |
| ABP N42A1657B |
| BD16702 |
| BD6864B |
| DW123207MTB |
| F6HZ 1126-AA |
| GUN 3600AX |
| HD1M |
| MER85123207002 |
| RC BD16702 |
| RW85-123207-002 |
| TDA 85 123207 002 |
| TDA85123207002 |
| TWD 85123207002 |
| TWDX60794 |
| 107150 |
| 80514180 |
| DB1657B |
| WEB66864B |
| WEB77864BW |
| 85-123207-002 |
