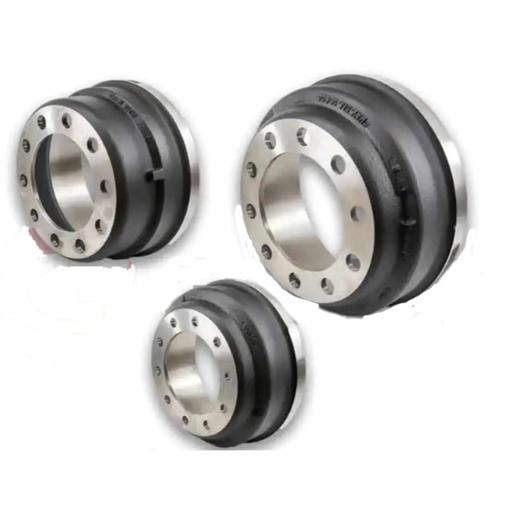

Brake Drum, 16-1/2 in x 7 in, 10 holes, (92,71 lb)
#ROC53123565002
Features & Benefits
- Provides consistent braking performance under heavy loads
- Precisely machined for smooth and reliable braking operation
- Designed to OE specifications for a perfect fit and function
- Minimizes brake fade for increased safety during sudden stops
- Durable cast iron construction ensures long-lasting performance
- Resistant to heat, ideal for high-temperature braking conditions
- Reduces noise and vibrations for a comfortable driving experience
- Corrosion-resistant coating for enhanced longevity and aesthetics
Specifications
| Axle Capacity (lb) | 50707 kg (23000 lbs) |
| Balanced or Unbalanced | Balanced |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 7-55/64 in (19.97 cm) |
| Bridge Width | 7 in (17,78 cm) |
| Drum Mounting | Outboard |
| Drum Type | BDA |

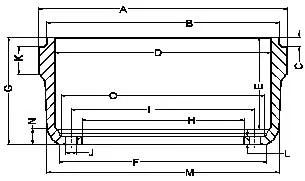

| Dust Shield Recess Depth (C) | 9/16 in (1.44 cm) |
| Dust Shield Recess Diameter (B) | 17-7/16 in (44.3 cm) |
| Height | 12 in (30.48 cm) |
| Hole Size | 13/16 in (2.07 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 10-3/8 in (26.36 cm) |
| Pilot Diameter | 9 in (22.86 cm) |
| Sidewall Offset (N) | 14-3/8 in (36.53 cm) |
| Squealer Band Width (K) | 1-51/64 in (4.57 cm) |
| Type | X30 Balanced |
| VMRS Code | 013-017-006 |
| Weight | 91 to 95 lbs |
| Weight (lbs) | 42.06 kg (92.71 lb) |
| Wheel Type | Disc |
| Width | 18 in (45.72 cm) |
Interchanges & Equivalent parts:
| 151.6711BA-LW |
| 3098923 |
| 35763565 |
| 53-123565 |
| 53-123565-002 |
| 53123565002-RI |
| 53123565002X30 |
| 60895 |
| 60895B |
| 67156B |
| 8235-53123565002 |
| ATI53123565002 |
| DW123565 |
| GUN 3141X |
| MER53-123565-002 |
| NS53123565002 |
| TDA 53 123565 002 |
| TDA53123565 |
| TDA53123565002 |
| 87156B |
| OTR1608B |
