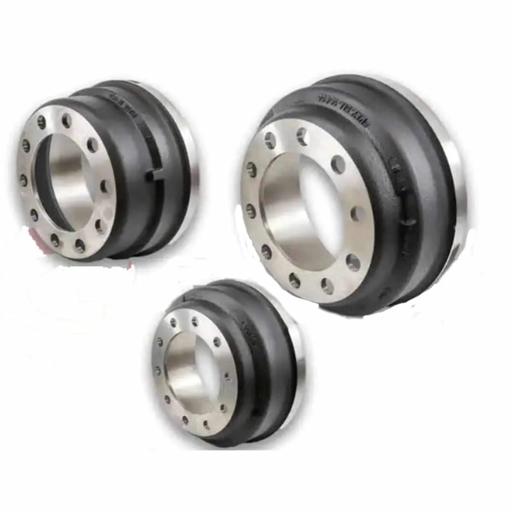

Brake Drum, 16-1/2 in x 7 in, 10 holes, (94 lb)
#ROC53123564002
Features & Benefits
- Lightweight design generates 15%+ weight savings compared to standard cast drums
- Lighter. stronger design features one-piece outer shell with a fused cast iron brake liner
- Exceeds FMVSS-121 dynamometer specifications
- Designed. cast. and machined for optimal balance and performance
- Backed by a nationwide warranty and the best product support in the business
- Balance within practice per TMC RP608
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities

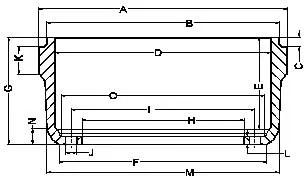

Specifications
| Axle Capacity (lb) | 50707 kg (23000 lbs) |
| Back Plate Thickness | 1/4 in (0.64 cm) |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Brake Surface Width | 7-41/64 in (19.41 cm) |
| Bridge Width | 7 in (17,78 cm) |
| Drum Mounting | Outboard |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 25/32 in (1.99 cm) |
| Dust Shield Recess Diameter (B) | 17-9/16 in (44.62 cm) |
| Hole Size | 13/16 in (2.07 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Overall Depth | 10-13/32 in (26.44 cm) |
| Overall Diameter | 18-1/2 in (46.99 cm) |
| Pilot Diameter | 8-17/32 in (21.67 cm) |
| Type | Steel Shell |
| VMRS Code | 013-017-006 |
| Weight | 91 to 95 lbs |
| Weight (lbs) | 42.64 kg (94 lb) |
| Wheel Type | Disc |
| Width | 7 in (17.78 cm) |
Interchanges & Equivalent parts:
| 3098925 |
| 35763564 |
| 53-123564 |
| 53-123564-002 |
| 53123564 |
| 53123564002-RI |
| 67101B |
| 8235-53123564002 |
| 8HA433 |
| 96893B |
| ATI53123564002 |
| DW123564 |
| GUN 3166X |
| GUN 9021X |
| HWI 87101B |
| MER53-123564-002 |
| MOT87101B |
| RW53-123564-002 |
| STE87101B |
| TDA 53 123564 002 |
| TDA53123564002 |
| 3166GUN |
| GUN 3166 |
| 123564 |
| 60893B |
| 3166 |
| 122607 |
| 122334 |
| OTR1603 |
| 87101B |
| 3483 |
