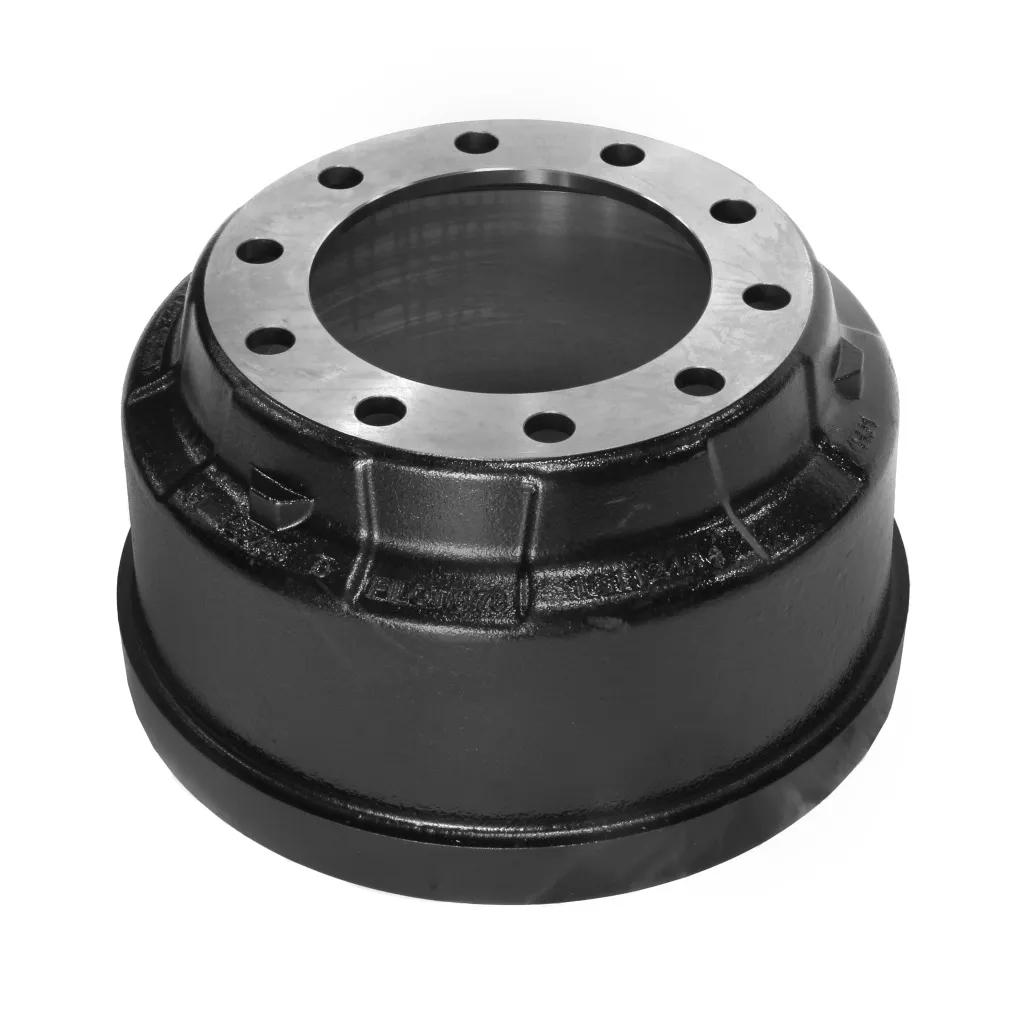

Brake Drum, 16-1/2 in x 7 in, 10 holes, (98 lb)
#ROC85123788002
Specifications
| Axle Capacity (lb) | 50707 kg (23000 lbs) |
| Balanced or Unbalanced | Balanced |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 7-29/64 in |
| Bridge Width | 7 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Height | 12 in |
| Hole Size | 1-5/64 in |
| Overall Depth | 10-35/64 in |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Type | Opti-Cast Balanced |
| VMRS Code | 013-017-006 |
| Weight | 96 to 100 lbs |
| Weight (lbs) | 44.46 kg (98 lb) |
| Wheel Type | Disc |
| Width | 18 in |
Interchanges & Equivalent parts:
| 03123788002 |
| 3922X |
| 56864B |
| 60000-018 |
| X60600 |
| 8235-85123788002 |
| ABP N42A1657VB |
| ACC3922X |
| BD16701 |
| BD6864VB |
| DRMX60600 |
| KIC60000-018 |
| MER85123788002 |
| OTR1601B |
| TDA85123788002 |
| TWD 85123788002 |
| DB1657B |
