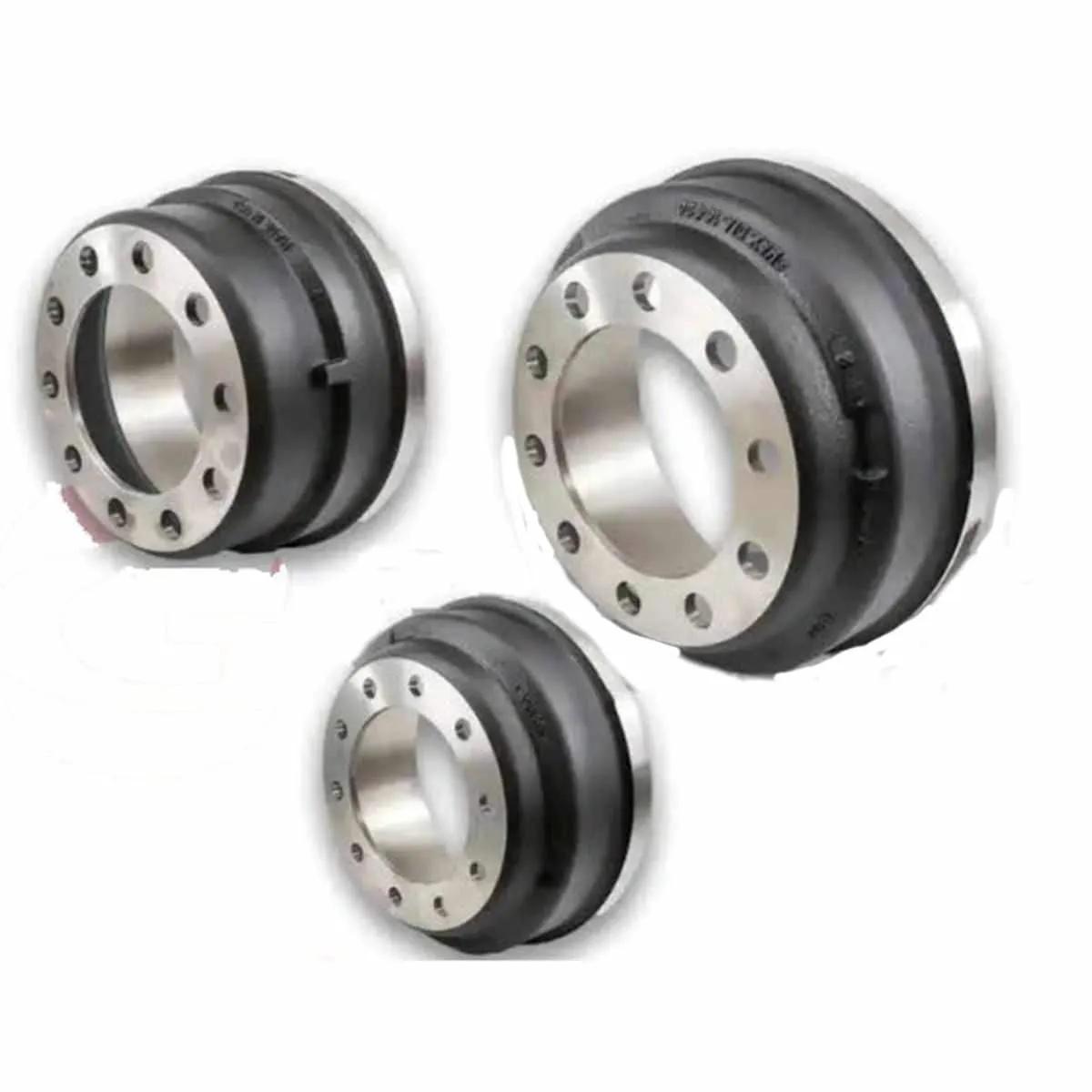

Brake Drum, 16-1/2 in x 7 in, 10 holes
#GUN9022X
Specifications
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 11/16 in |
| Dust Shield Recess Diameter (B) | 17-29/64 in |
| Hole Size | 13/16 in |
| Maximum Diameter | 16-5/8 in |
| Overall Depth | 10-3/8 in |
| Overall Diameter | 18-11/16 in |
| Pilot Diameter | 8-17/32 in (21.67 cm) |
| Sidewall Offset (N) | 2-63/64 in |
| Squealer Band Width (K) | 2-3/8 in |
| VMRS Code | 013-017-006 |
Interchanges & Equivalent parts:
| 3699X |
| 87295B |
