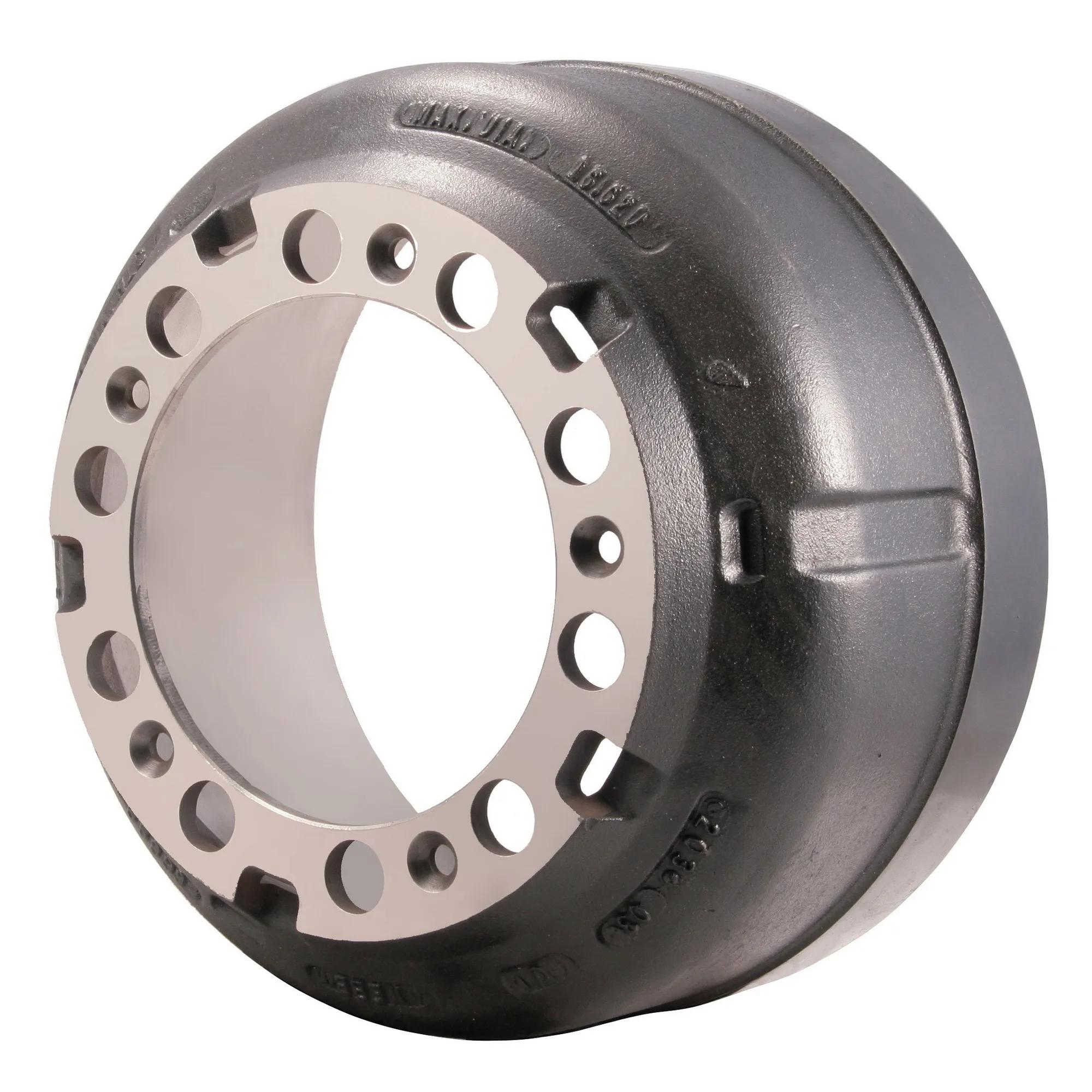

Brake Drum, 16-1/2 in x 7 in, (122,3 lb)
#WEB66899B
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 1/2 in |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 7 in |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Flat | 12-3/4 in (32.39 cm) |
| Brake Surface Width | 7-3/8 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | Outboard |
| Hole Size | 1-5/16 in |
| Maximum Diameter | 16-5/8 in |
| Notes | Extra Heavy Duty |
| Overall Depth | 10-3/16 in |
| Pilot Diameter | 12-3/4 in (32,39 cm) |
| Type | Cast |
| Vented | None |
| VMRS Code | 013-017-006 |
| Weight | 121 to 130 lbs |
| Weight (lbs) | 55,47 kg (122,3 lb) |
| Width | 7 in |
Interchanges & Equivalent parts:
| 3410X |
| 66899 |
| 66899F |
| 8219216 |
| 5148901 |
| 5161801 |
| 5182710 |
| 5184010 |
| 5205910 |
| 5211610 |
