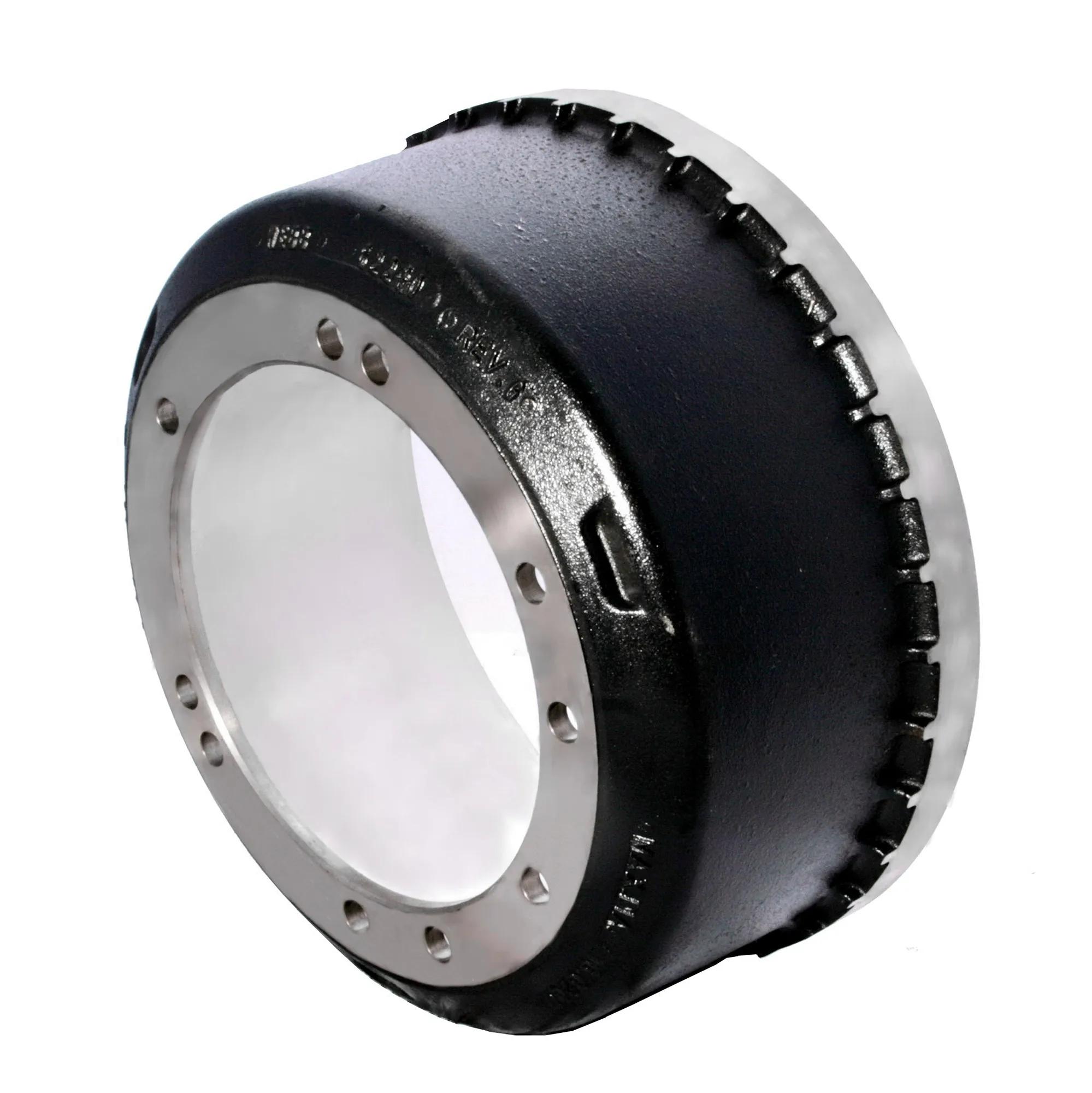

Brake Drum, 16-1/2 in x 7 in, 5 & 6 holes, (99,92 lb)
#WEB62240F
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
Back Plate Thickness | 1/2 in (1.27 cm) |
Bolt Circle Diameter | 12-3/4 in (32.39 cm) |
Bolt Hole (Number) | 5 And 6 |
Brake Shoe Width | 7 in (17.78 cm) |
Brake Size | 16-1/2 in x 7 in |
Brake Surface Diameter | 16-1/2 in (41.91 cm) |
Brake Surface Width | 7-13/32 in (18.82 cm) |
Drum Mounting | Inboard |
Hole Size | 25/32 in (1.99 cm) |
Overall Depth | 8-25/32 in (22.31 cm) |
Pilot Diameter | 11-1/4 in (28.58 cm) |
Type | Cast |
Weight | 96 to 100 lbs |
Weight (lbs) | 45.33 kg (99.92 lb) |
Width | 7 in (17.78 cm) |
Maximum Diameter | 16-5/8 in (42.23 cm) |
