Brake Drum, 16-1/2 in x 7 in, 6 holes, (101 lb)
#GUN2577A
Product Overview
This 16.5 in x 7 in brake drum is designed for truck axles. It features 6 bolt holes, an inboard mounting, and a durable cast construction for reliable braking performance in demanding conditions.
Specifications
| Bolt Circle Diameter | 12-1/2 in |
| Bolt Hole (Number) | 6 |
| Brake Shoe Width | 7 in |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 7-3/8 in |
| Drum Mounting | Inboard |
| Drum Mount Type | Inboard |
| Drum Type | ABA |

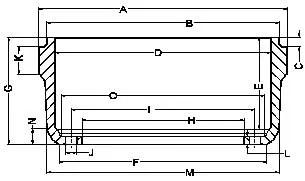

| Dust Shield Recess Depth (C) | 51/64 in |
| Dust Shield Recess Diameter (B) | 17-1/2 in |
| Hole Size | 21/32 in |
| Maximum Diameter | 16-5/8 in |
| Overall Depth | 8-29/32 in |
| Overall Diameter | 18-15/16 in |
| Pilot Diameter | 11 in (27.94 cm) |
| Sidewall Offset (N) | 15/16 in |
| Squealer Band Width (K) | 2-3/32 in |
| VMRS Code | 013-017-006 |
| Weight | 101 to 105 lbs |
| Weight (lbs) | 46.36 kg (101 lb) |
| Wheel Type | Spoke |
Interchanges & Equivalent parts:
| 03120754 |
| 100214 |
| 120754 |
| U00X60039 |
| U00X60039S |
| X60039 |
| X60039S |
| 3120754 |
