Brake Drum, 16-1/2 in x 8-5/8 in, 10 holes, (127 lb)
#GUN3807A

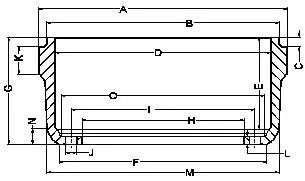

Specifications
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 8-5/8 in |
| Brake Size | 16-1/2 in x 8-5/8 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 9-5/64 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 51/64 in |
| Dust Shield Recess Diameter (B) | 17-3/8 in |
| Hole Size | 1 in |
| Maximum Diameter | 16-5/8 in |
| Overall Depth | 11-25/64 in |
| Overall Diameter | 18-7/8 in |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Sidewall Offset (N) | 2-27/64 in |
| Squealer Band Width (K) | 2 in |
| VMRS Code | 013-017-006 |
| Weight | 121 to 130 lbs |
| Weight (lbs) | 57.61 kg (127 lb) |
| Wheel Type | Disc |
Interchanges & Equivalent parts:
| U003807A |
| 38BD07AB |
