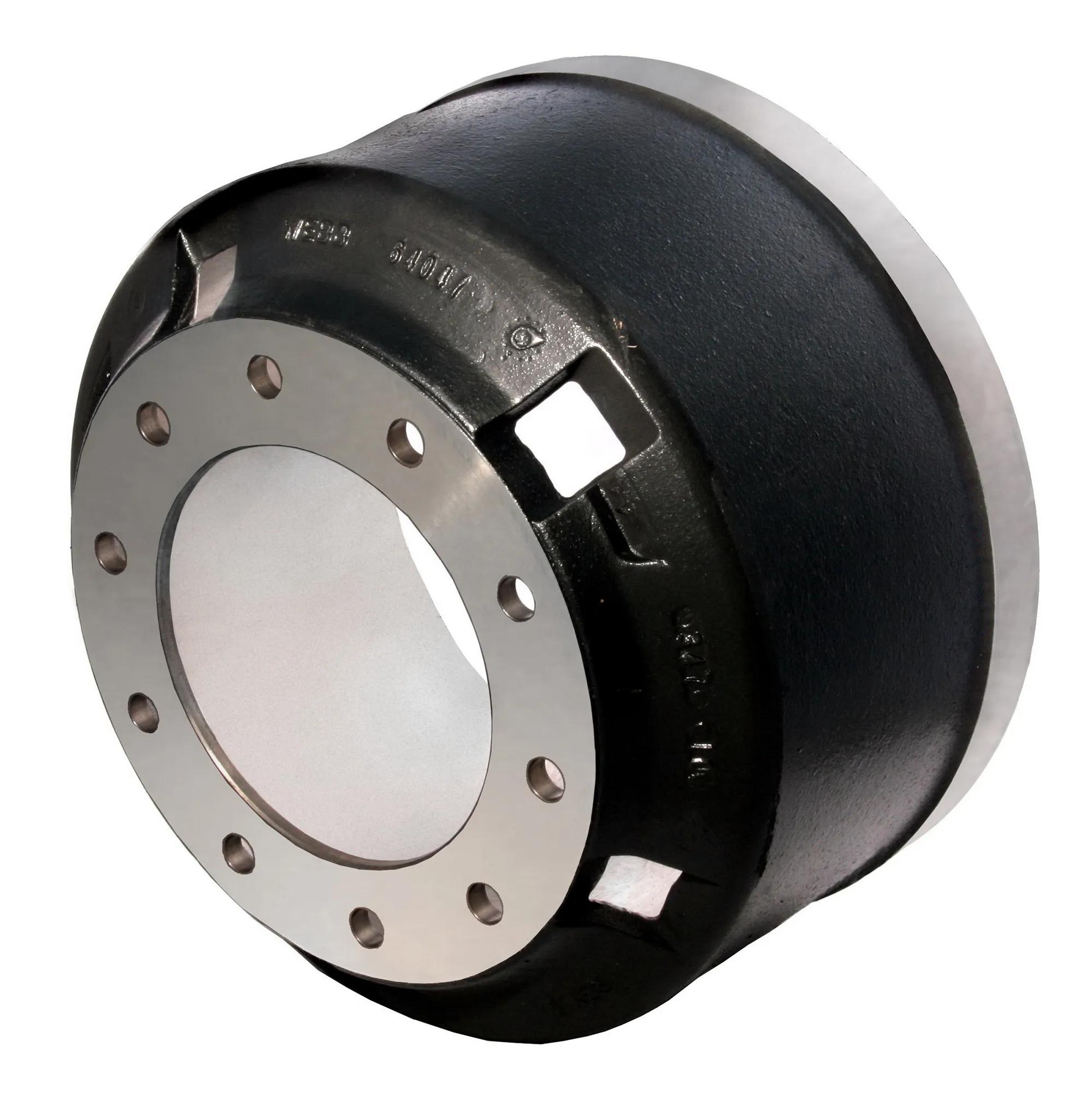

Brake Drum, 16-1/2 in x 8-5/8 in, 10 holes, (147 lb)
#WEB64041F
Product Overview
Webb Brake Drums Are Made From a High Grade of Cast Iron for Long Srevice and Conform to SAE Recommended Practices.
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 1/2 in |
| Bolt Circle Diameter | 11-1/4 in |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 8-5/8 in |
| Brake Size | 16-1/2 in x 8-5/8 in |
| Brake Surface Diameter | 16-1/2 in |
| Brake Surface Width | 8-7/8 in |
| Drum Mounting | Outboard |
| Drum Mount Type | Outboard |
| Hole Size | 13/16 in |
| Maximum Diameter | 16-13/16 in |
| Overall Depth | 11-3/16 in |
| Pilot Diameter | 8-17/32 in (21.67 cm) |
| Type | Cast |
| VMRS Code | 013-017-006 |
| Weight | More than 141 lbs |
| Weight (lbs) | 66.68 kg (147 lb) |
| Width | 8 in |
Interchanges & Equivalent parts:
| 64041 |
| 64041B |
| 5283311 |
| 5301401 |
