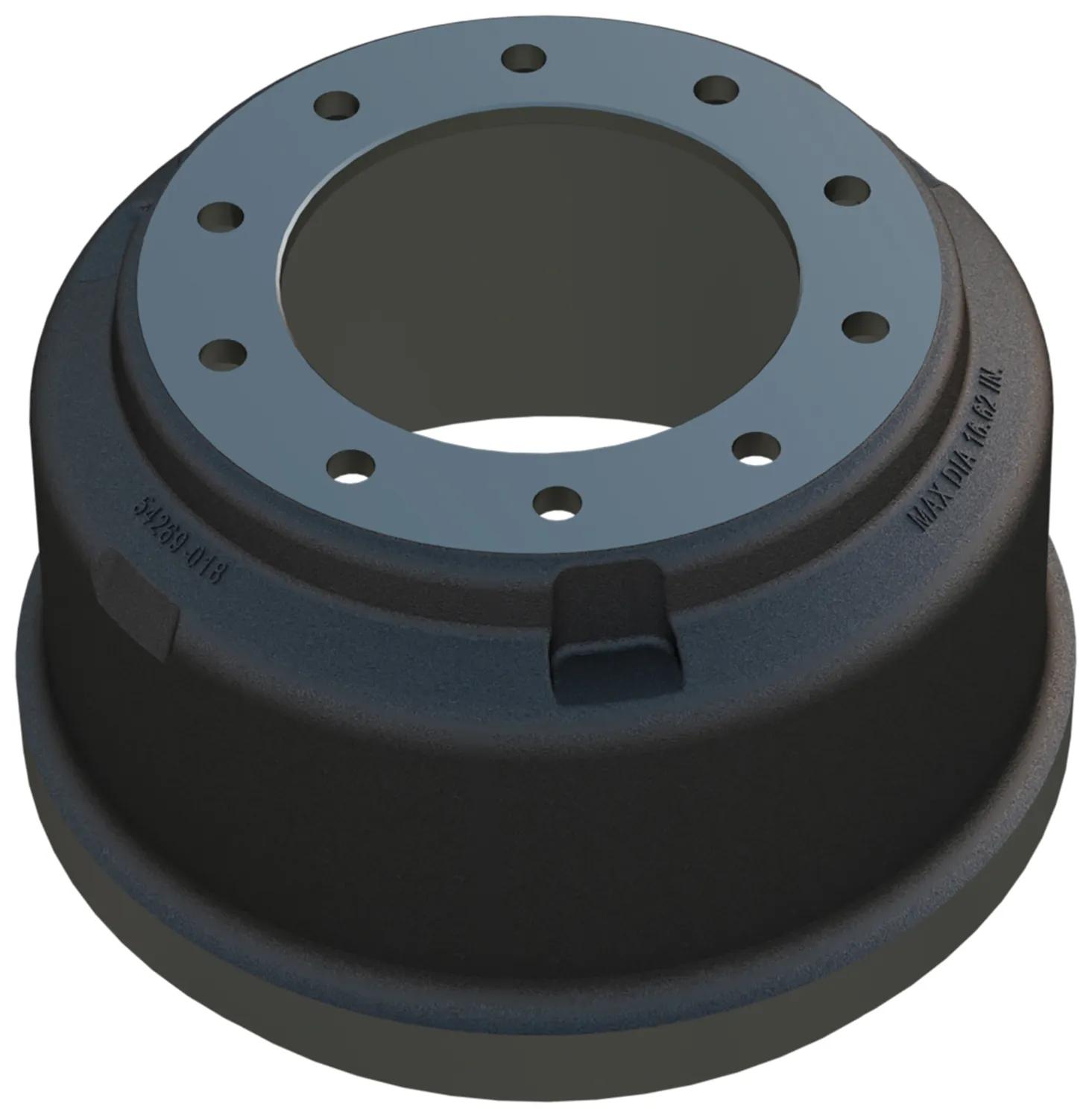

Brake Drum, 16-1/2 in x 8 in, 10 holes, (122 lb)

#KIC54269-018

Specifications

Axle Capacity (lb)	50707 kg (23000 lbs)
Back Plate Thickness	9/16 in
Bolt Circle Diameter	11-1/4 in
Bolt Hole (Number)	10
Brake Shoe Width	8 in
Brake Size	16-1/2 in x 8 in
Brake Surface Diameter	16-1/2 in
Brake Surface Width	8-39/64 in
Bridge Width	8 in
Drum Mounting	Outboard
Drum Type	BDA
Dust Shield Recess Depth (C)	11/16 in
Dust Shield Recess Diameter (B)	17-1/2 in
Height	12 in
Hole Size	1 in
Maximum Diameter	16-5/8 in
Overall Depth	11-3/32 in
Overall Diameter	18-29/32 in
Pilot Diameter	8-3/4 in (22.23 cm)
Sidewall Offset (N)	2-1/2 in
Squealer Band Width (K)	2-13/64 in
Type	U
VMRS Code	013-017-006
Weight	121 to 130 lbs
Weight (lbs)	55.34 kg (122 lb)
Width	8 in
