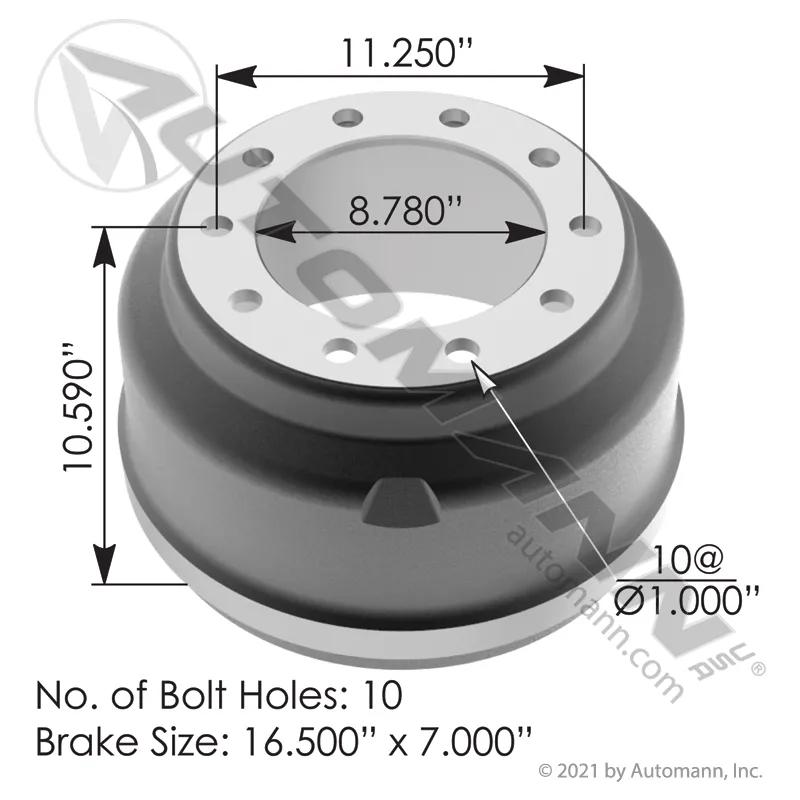

Brake Drum 16.500 in. X 7.000 in. Automann
#MZB151.6701BA
Specifications
| Axle Capacity (lb) | 66139 kg (30000 lbs) |
| Bolt Circle Diameter | 11-1/4 in (28.58 cm) |
| Bolt Hole (Number) | 10 |
| Brake Shoe Width | 5 in (12.7 cm) |
| Brake Size | 16-1/2 in x 7 in |
| Brake Surface Diameter | 16-1/2 in (41.91 cm) |
| Drum Mounting | Outboard |
| Drum Type | BDA |
| Dust Shield Recess Depth (C) | 21/32 in (1.67 cm) |
| Dust Shield Recess Diameter (B) | 17-41/64 in (44.81 cm) |
| Hole Size | 1 in (2.54 cm) |
| Overall Depth | 10-35/64 in (26.79 cm) |
| Pilot Diameter | 8-25/32 in (22.31 cm) |
| Sidewall Offset (N) | 3-3/32 in (7.85 cm) |
| Squealer Band Width (K) | 2-23/32 in (6.91 cm) |
| Width | 18 in (45.72 cm) |
| Maximum Diameter | 16-5/8 in (42.23 cm) |
| Height | 12 in (30.48 cm) |
| Bridge Width | 7 in (17,78 cm) |
| Overall Diameter | 18-7/8 in (47.95 cm) |
