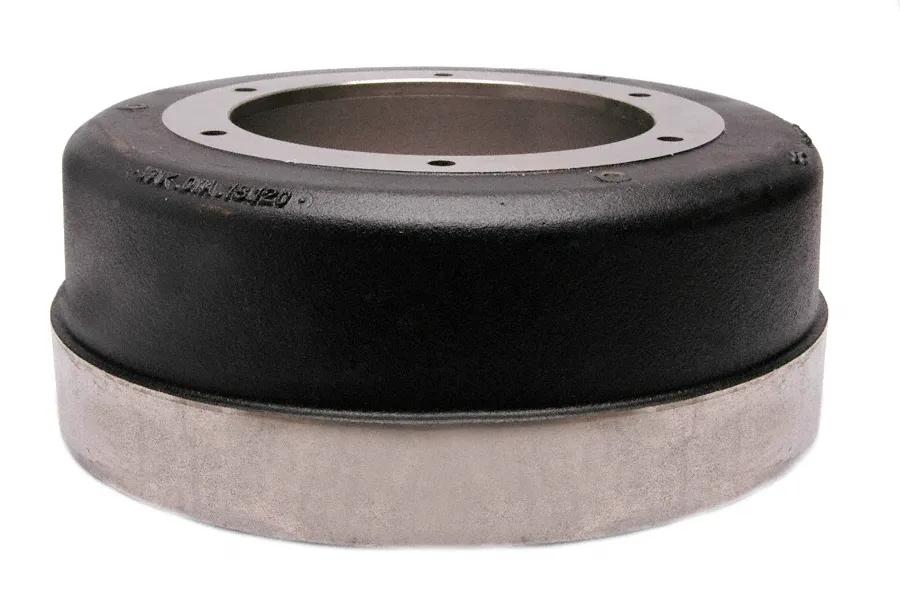

Brake Drum, 18 in x 7 in, 6 holes, (148 lb)
#GUN3197X
Product Overview
This 18 in x 7 in brake drum is designed for heavy-duty truck axles. It features 6 bolt holes, an inboard mounting, and a durable cast construction for reliable braking performance in demanding conditions.
Features & Benefits
- All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industrys Most Comprehensive Warranties on Material and Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function. Form & Fit.
- Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors. and Various O.E.M. Dealer Networks.
- Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.
Specifications
| Bolt Circle Diameter | 12-3/4 in |
| Bolt Hole (Number) | 6 |
| Brake Shoe Width | 7 in |
| Brake Size | 18 in x 7 in |
| Brake Surface Diameter | 18 in |
| Brake Surface Width | 7-1/2 in |
| Drum Mounting | Inboard |
| Drum Mount Type | Inboard |
| Drum Type | AAH |
| Dust Shield Recess Depth (C) | 21/32 in |
| Dust Shield Recess Diameter (B) | 18-7/8 in |
| Hole Size | 41/64 in |
| Maximum Diameter | 18-1/8 in |
| Overall Depth | 8-7/32 in |
| Overall Diameter | 20-1/2 in |
| Packaging | Individual / Bulk |
| Pilot Diameter | 11 in (27.94 cm) |
| Sidewall Offset (N) | 1-5/64 in |
| Squealer Band Width (K) | 3-1/64 in |
| VMRS Code | 013-017-006 |
| Weight | More than 141 lbs |
| Weight (lbs) | 67.14 kg (148 lb) |
| Wheel Type | Spoke |
Interchanges & Equivalent parts:
| 54203-01 |
