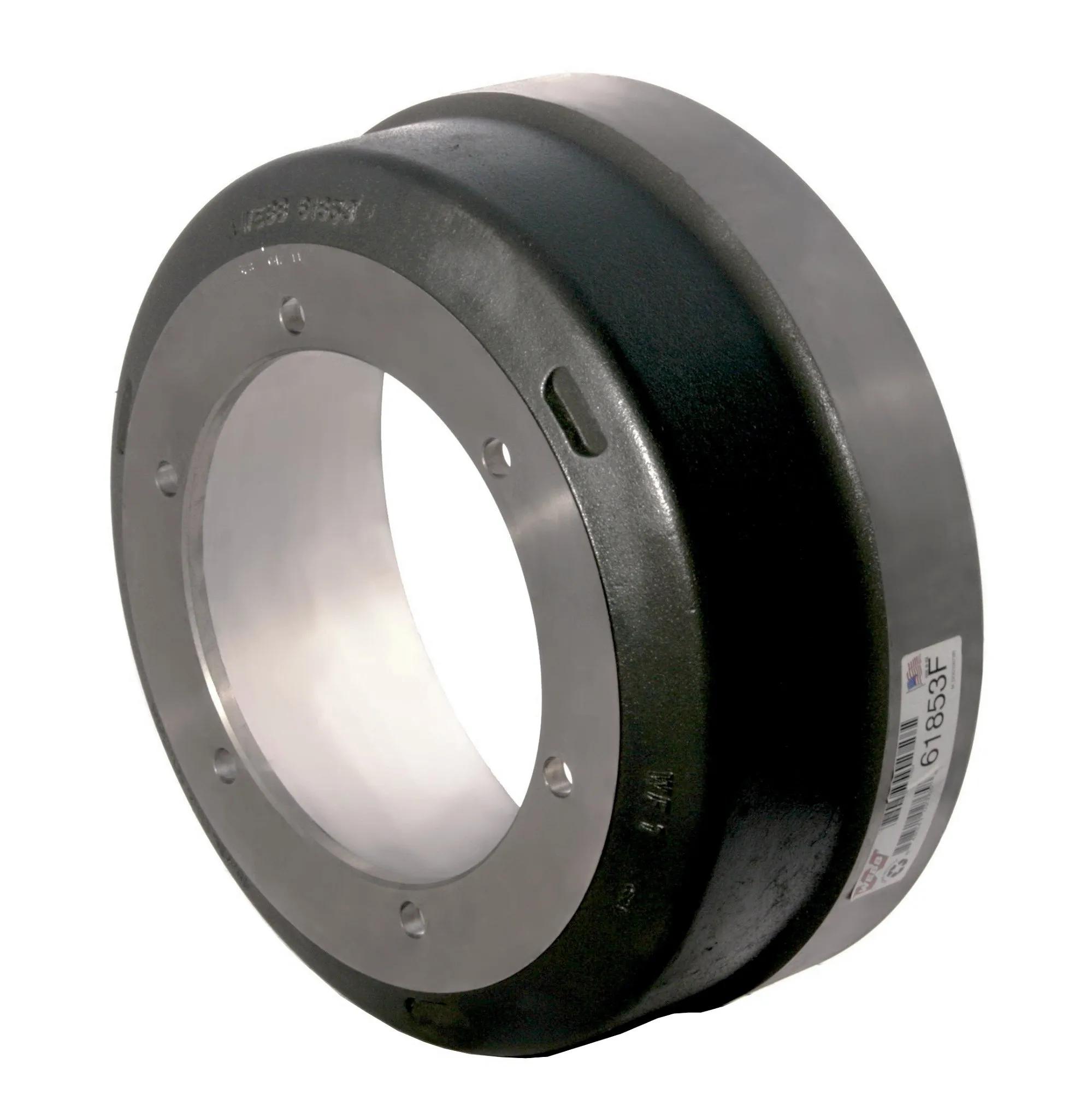

Brake Drum, 18 in x 7 in, 6 holes, (58 lb)
#WEB61853F
Features & Benefits
- Backed by a nationwide warranty and the best product support in the business
- Webb Wheel Products is your OE first-fit and aftermarket heavy-duty wheel-end component parts leader
- Manufactured in IATF 16949 or ISO 9001 registered facilities
Specifications
| Back Plate Thickness | 9/16 in (1.44 cm) |
| Bolt Circle Diameter | 12-3/4 in (32.39 cm) |
| Bolt Hole (Number) | 6 |
| Brake Shoe Width | 7 in (17.78 cm) |
| Brake Size | 18 in x 7 in |
| Brake Surface Diameter | 18 in (45.72 cm) |
| Brake Surface Width | 7-1/4 in (18.42 cm) |
| Drum Mounting | Inboard |
| Hole Size | 25/32 in (1.99 cm) |
| Overall Depth | 8-1/2 in (21.59 cm) |
| Pilot Diameter | 11-1/4 in (28.58 cm) |
| Type | Cast |
| Weight | 51 to 60 lbs |
| Weight (lbs) | 26.31 kg (58 lb) |
| Width | 7 in (17.78 cm) |
| Maximum Diameter | 18-1/4 in (46.36 cm) |
