Brake Drum, BEA Type, 16-1/2 in x 6 in, 10 Holes, 16-1/2 in Surface Diameter, 6.74 in Surface Width

#GUN3772X

Product Overview

This 16.5 in x 6 in BEA brake drum is designed for heavy-duty applications. It features 10 bolt holes, outboard mounting, and durable cast construction for reliable braking performance.Brake Drum, BEA Brake, Outboard Mount, Disc Wheel, 11-1/4 in Bolt Circle Dia, 1 in Bolt Hole Dia, 16-1/2 x 6 in Brake, 16-1/2 in Brake Surface Dia, 6.74 in Brake Surface Width, 10 Holes, 8-25/32 in Pilot Dia, 9.65 in Height

Features & Benefits

All Gunite Brake Drums & Disc Brake Rotors Are Fully Protected by One of the Industry's Most Comprehensive Warranties on Material and Workmanship.

Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.

Gunite Brake Drums & Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors and Various O.E.M. Dealer Networks.

Gunite Brake Drums & Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.

Gunite Offers the Industry's Most Complete Line of Brake Drums & Disc Brake Rotors.

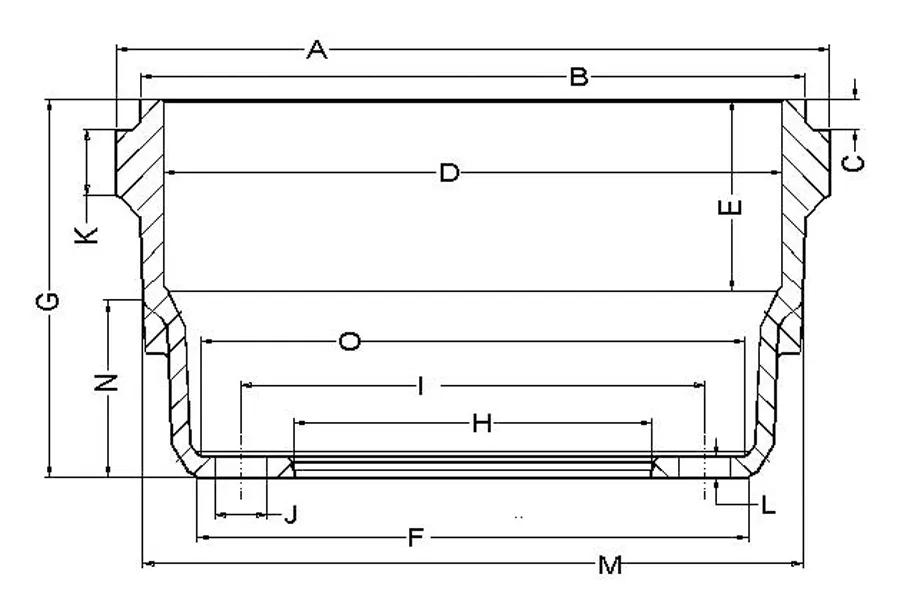

Specifications

Back Plate Thickness	5/8 in
Bolt Circle Diameter	11-1/4 in
Brake Shoe Width	6 in
Brake Size	16-1/2 in x 6 in
Brake Surface Diameter	16-1/2 in
Brake Surface Width	6-47/64 in
Dust Shield Recess Depth (C)	21/32 in
Dust Shield Recess Diameter (B)	17-5/8 in
Height	9.65 in
Hole Size	1-3/32 in
Maximum Diameter	16-5/8 in
Overall Depth	9-21/32 in
Overall Diameter	18-51/64 in
Packaging	Individual / Bulk
Pilot Diameter	8-25/32 in
Sidewall Offset (N)	1-11/32 in
Type	BEA
VMRS Code	013-017-006
Weight	106 to 110 lbs
Weight (lbs)	49.57 kg (108 lb)
Wheel Type	Disc
Width	7 in
Bolt Hole Diameter	1 in
Brake Type	BEA
Mount Type	Outboard
Number of Holes	10
Product Category	Brake Drum
