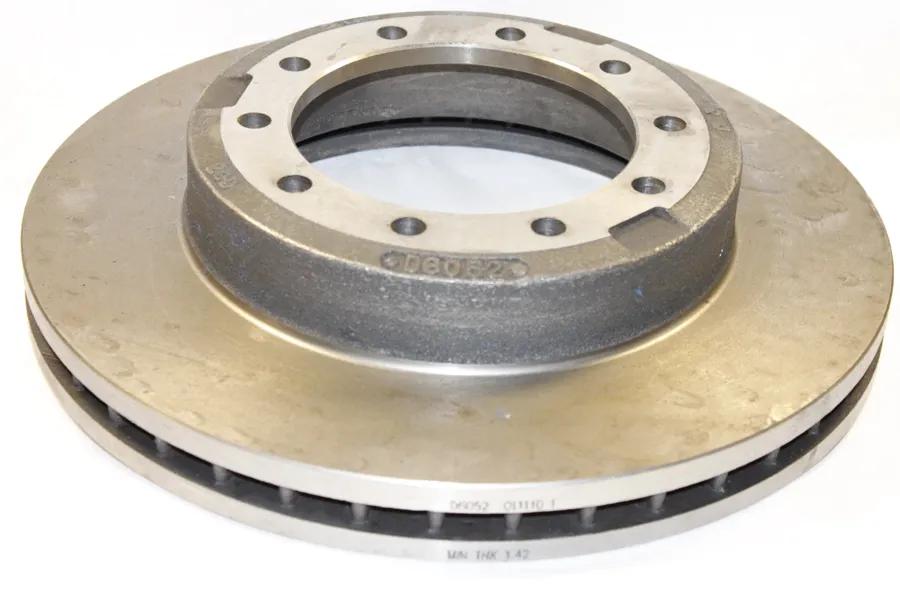

Brake Rotor, Dia: 15-25/64 in, Thi: 1-17/32 in, Hat Shaped
#GUND6052
Features & Benefits
- All Gunite Brake Drums and Disc Brake Rotors Are Fully Protected By One of the Industry's Most Comprehensive Warranties on Materials & Workmanship.
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
- Gunite Brake Drums and Disc Brake Rotors Are Available Nationwide Through Over 400 Independent Warehouse Distributors, and Various O.E.M. Dealer Networks.
- Gunite Brake Drums and Rotors Offer a Level of Engineering Quality That Meets or Surpasses the Requirements of Every Truck & Trailer Manufacturer.
- Gunite Offers The Industry's Most Complete Line of Brake Drums and Disc Brake Rotors.
Specifications
Aftermarket Status | Active |
Bolt Circle | 7-1/4 in (18.42 cm) |
Bolt Circle Diameter (E) | 7.25 |
Bolt Hole Size | .57 in. |
Bolt Hole Size (G) | 0.57 |
Brake Rotor Diameter | 15.39 in. |
Brake Rotor Type | Hat Shape |
Brake Rotor Minimum Turning Thickness | 1.42 in. |
Brake Surface Width | 1-17/32 in (3.89 cm) |
Brake Surface Width (B) | 1.53 |
Diameter | 15-25/64 in (39.09 cm) |
Discard Thickness (in.) | 1-27/64 in (3.62 cm) |
Disc Thickness | 1-17/32 in (3.89 cm) |
Finished Weight | 39 |
Finish Weight | 39 lbs |
Minimum Wear Thickness | 1.42 |
Number of Bolt Holes | 10 |
Number of Bolt Holes (F) | 10 |
# of Bolt Holes | 10 |
Overall Depth | 3-13/32 in (8.66 cm) |
Overall Depth (C) | 3.4 |
Overall Diameter | 15-25/64 in (39.1 cm) |
Overall Diameter (A) | 15.39 |
Package Quantity | 100 |
Packaging | Boxed |
Pilot Diameter | 6 in (15.24 cm) |
Pilot Diameter (D) | 6.012 |
Rotor Shape | Hat Shaped Rotor |
Rotor Style | Hat Shape |
Thickness | 1-17/32 in (3.89 cm) |
Type | Hat Shaped |
Weight | 39 kg (85.99 lbs) |
Wheel Type | Disc |
