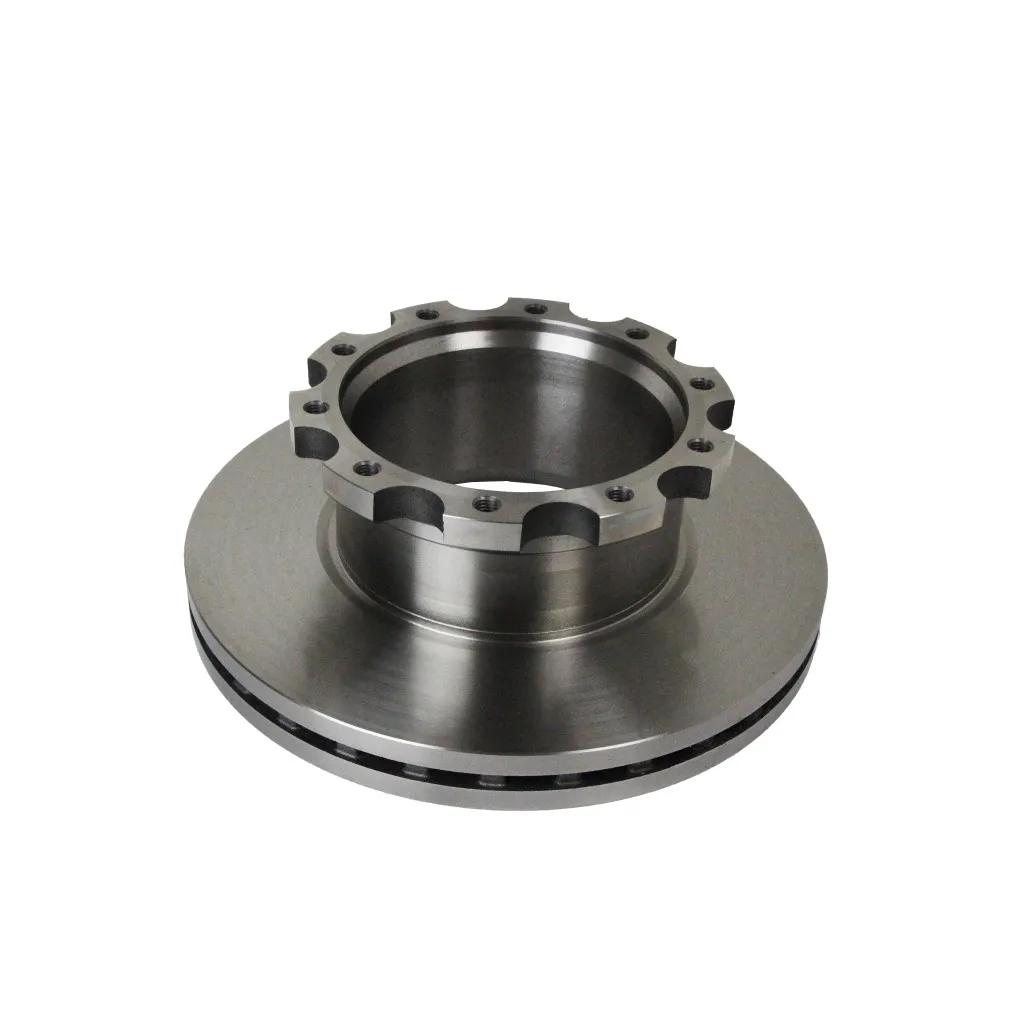

Brake Rotor, Dia: 16-15/16 in, Thi: 1-49/64 in, U-Shaped
#ROCM44D76617
Specifications
| Application | Bendix/Knorr |
| Bolt Circle | 9-13/16 in (24.93 cm) |
| Bolt Circle Diameter (in.) | 9.8 |
| Bolt Circle Diameter (MM) | 250 |
| Bolt Hole (Number) | 10 - M16x2 |
| Bolt Hole Size | 5/8"-18 |
| Diameter | 16-15/16 in (43.03 cm) |
| Discard Thickness (in.) | 1-1/2 in (3.81 cm) |
| Discard Thickness (MM) | 37 |
| Flange Thickness | 0.9 |
| Flange Thickness (MM) | 24.1 |
| Height | 12 in (30.48 cm) |
| Length | 19-1/2 in (49.53 cm) |
| Marketing Group | Rotors |
| Material | Iron |
| Model | ADB22X/ADB225 |
| Mounting Holes | 10 |
| New Disc Thickness | 1-3/4 in (4.45 cm) |
| New Disc Thickness (MM) | 45.0 mm |
| New Disc Thickness (inches) | 1.8 in. |
| OE Mfg. | Bendix/Knorr |
| OEM Part # | 802082 |
| Outside Disc (in.) | 16.9 |
| Outside Disc (MM) | 430 |
| Overall Depth | 5-29/32 in (15.01 cm) |
| Overall Rotor Depth (in.) | 5.9 |
| Overall Rotor Depth (MM) | 150 |
| Pallet Quantity | 8 |
| Pilot Diameter | 8-21/32 in (21.99 cm) |
| Rotor Shape | U-Shaped Rotor |
| Thickness | 1-49/64 in (4.5 cm) |
| Type | U-Shaped |
| Unit Pack | 1 |
| UPC | 884879811390 |
| VMRS Code | 013-017-001 |
| Weight | 82.26 kg (181.36 lbs) |
| Width | 19-1/2 in (49.53 cm) |
