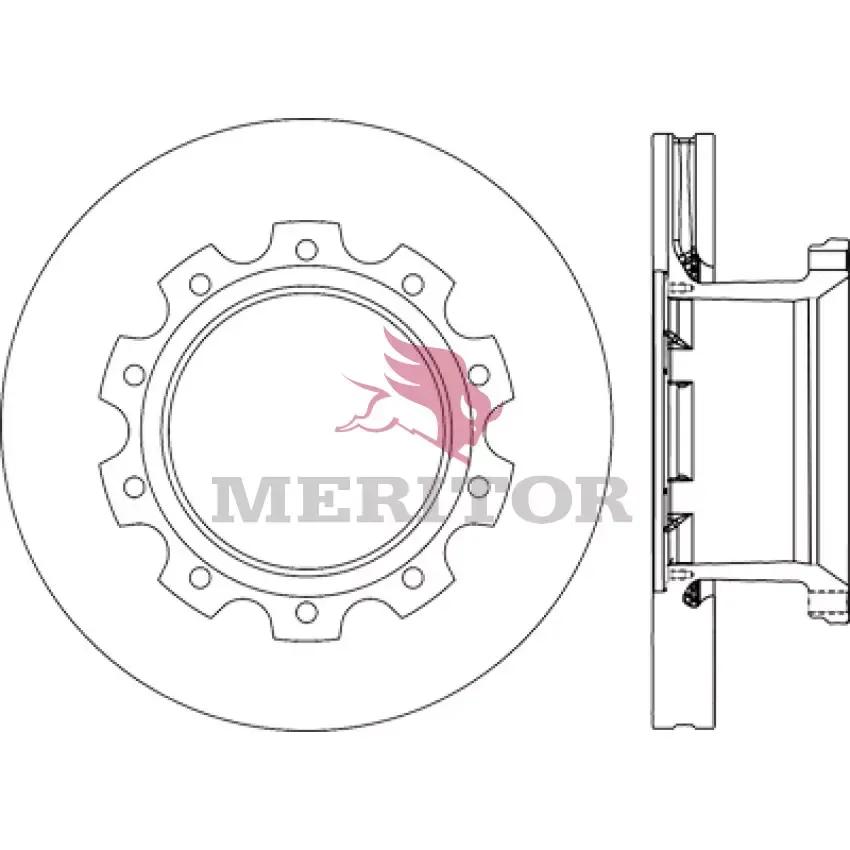

Disque de frein, Dia: 16-15/16 po, Épa: 1-49/64 po, Style U
#ROCM44D76613
Spécifications
| ABS | Yes |
| Application | Wabco Pan 22 |
| Bolt Circle Diameter | 9-13/16 in (24.92 cm) |
| Diameter | 16-15/16 in (43.03 cm) |
| Diameter Range | 16 to 16.99 in |
| Discard Thickness (in.) | 1-9/16 in (3.97 cm) |
| Finish | Directional |
| Flange Thickness | 7/8 in (2,23 cm) |
| Hardware Included | No |
| Height | 5-29/32 in (15.01 cm) |
| Hole Size | M16 X 2.0 |
| Length | 19-29/32 in (50.57 cm) |
| Material | Iron |
| Model | Pan 22 |
| New Disc Thickness | 1-49/64 in (4.5 cm) |
| Nombre de trous de boulon | 10 |
| Diamètre du pilote | 8-11/16 in (22.07 cm) |
| Dents | Cast Teeth |
| Type | U-Shaped |
| Ventilé ou non ventilé | Vented |
| Code VMRS | 013-017-001 |
| Poids | 78.46 lb (35.58 kg) |
Interchanges et pièces équivalentes:
| 10016195 |
| 10018609 |
| 125700 |
| 76AR613G |
| 8235-M44D76613 |
| ADR180718 |
| CT807 |
| G0796613000 |
| SSR941 |
| TWD M44D76613 |
| CON10085621 |
| S34172 |
