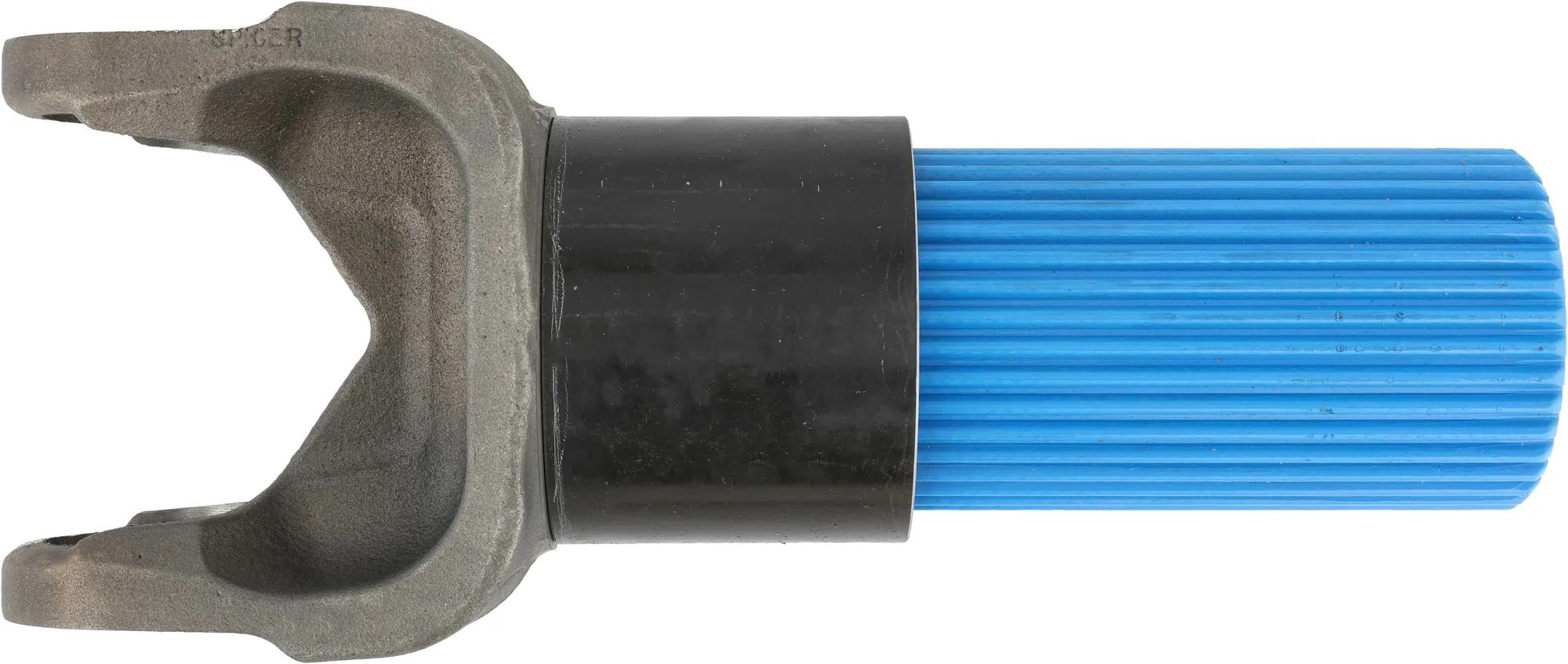

BS Yoke Shaft Assembly, SPL250, 1, 5.236 in Spline Length, 0.154 in Spline Width
#SPI250-82-23028-1X
Product Overview
Yoke Shaft Assembly, BS, 11.811 in Center Line to End of Spline, 7.205 in End/Spline to Point/Rad, SPL250, 38 Spline Count, 3.5787 in Spline Hole Minor Diameter, 5.236 in Spline Length, 0.154 in Spline Width, Style: 1
Specifications
| Series | SPL250 |
| Type | BS |
| VMRS Code | 024002061 |
| Spline Count | 38 |
| Spline Hole Minor Diameter | 35787 |
| Spline Width | 154 |
| Style | 1 |
| Manufacturer Part Number | 250-82-23028-1X |
| Product Category | Yoke Shaft Assembly |
| Quantity | 1 |
| Weight | 27.73 lb |
