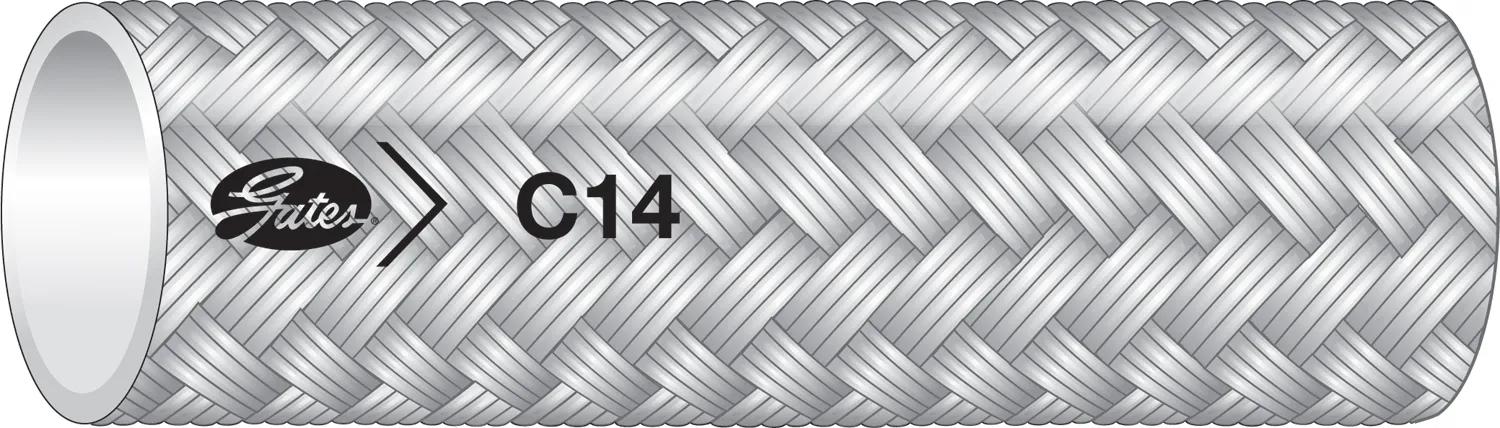

C14 PTFE Hose - SAE100R14 Type A - Non-Conductive

#GAT85705

Product Overview

Recommended for Air Compressor Discharge, Hot Oil & Fluids, Hot & Greasy Environments.

In Those Cases Where Electrostatic Discharge Can Occur, Conductive PTFE Hose w/ a Conductive Tube (Gates C14CT) is Recommended.

Electrostatic Discharge: Many Applications Involving PTFE Hose Do Not Require a Conductive Tube.

But You Must Review the Potential for Electrostatic Discharge for Every Application & Be Aware That Static Electricity Can Be Hazardous.

Temperature Range: Dynamic: -65 Deg F - +400 Deg F (-54 Deg C - +204 Deg C). Static: -65 Deg F - +450 Deg F (-54 Deg C - +232 Deg C). Recommended Couplings: C14 Couplings (Brass & Stainless Steel Available).

Color	Silver
Coupling Recommendation	C14 Couplings
Cover Material	Stainless Steel Braid
Cover Type	Braided
Dash Size	12
Industrial Description	12C14X25FT
Inside Diameter	5/8 in (1.6 cm)
Length	25 ft (7.62 m)
Maximum Pressure	800 psi (55.16 bar)
Minimum Burst Pressure (PSI)	3200 psi (220.63 bar)
Outside Diameter	51/64 in (2.03 cm)
Product Type	C14 PTFE Hose - SAE 100R14 Type A - Non-Conductive
Radius	7-51/64 in (19.81 cm)
Reinforcement	One Braid of 300 Series Stainless Steel Wire - 304 Stainless
Standard	SAE 100R14
Temperature Range	-65°F @ 400°F Dynamic, -65°F @ 450°F Static
Tube Description	Non-Conductive White, Smooth Bore Polytetrafluoroethylene
Type	Fleet Application & Maintenance Hose
Vacuum Rating	20 inhg (9.83 psi)
