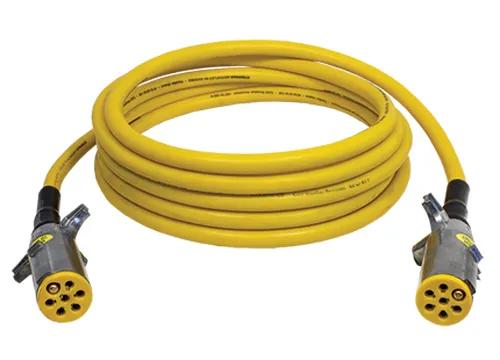

Cable Assembly - ISOFLEX™, ISO 3731, Straight, 15 Ft., 4/12, 2/10 & 1/8 ga., with Zinc Die-Cast ISO 3731 Plugs
#PHI31-2073
Features & Benefits
- Available in 3-in-1 & 4-in-1 assemblies
- Flexible from -40°F to 150°F (40°C to 66°C)
- For auxiliary applications and connections
- Good chemical & abrasion resistance
- Heavy-duty, reinforced zinc die-cast plug housing
- Spring-wrapped compression contact pins
- Twisted pair brown & green wires to reduce signal
- 1/8, 2/10 and 4/12 gauge, for ISO applications
- With zinc die-cast plugs
Specifications
| Color | Yellow |
| Length | 15 ft |
| Type | Straight |
| Gauge | 1/8 ga, 2/10 ga, 4/12 ga |
| Material | Zinc Die-Cast |
| Temperature Range | -63°C (-82°F) to 90°C (195°F) |
| Terminal Type | ISO 3731 Plugs |
| Product Category | Cable Assembly |
Interchanges & Equivalent parts:
| 31-2073 |
| 7AEB152EG |
| 7AEB152EW |
