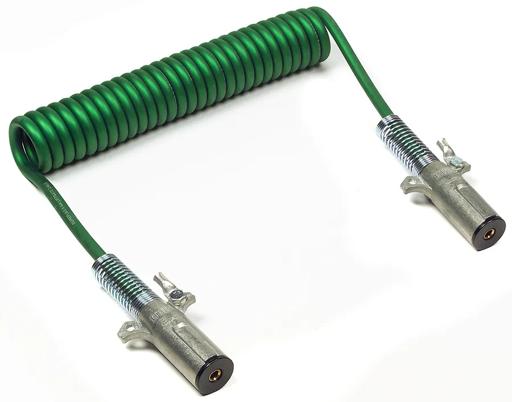

Cable Assembly - Liftgate, Single Pole, Coiled, 15 Ft., 1/4 ga., Zinc Die-Cast Plugs
#PHI23-4625
Product Overview
Cable Assembly, Coiled, Zinc Die-Cast, 1/4 GA Gauge, 1 Contacts, -87 to 150 °F Temperature Range, 15 ft Length
Features & Benefits
- 100 amp continuous capacity; 200 amp intermittent capacity
- 4 ga. fine stranded copper for flexibility
- As recommended practice, use tracker bar spring kit or pogo stick to support cable assemblies with longer leads
- Flexible from -87°F to 150°F (-66°C to 66°C)
- For liftgate applications utilizing a trailer battery pack
- Good recoil memory, chemical & abrasion resistance
- Heavy duty, reinforced zinc die-cast housing
- Mates with single pole metal socket 15-320
Specifications
| Color | Green |
| Length | 15 ft |
| Packaging | Bagged |
| Type | Lift Gate Cables |
| Current Rating | 100 amp continuous; 200 amp intermittent |
| Gauge | 1/4 ga |
| Material | Zinc Die-Cast |
| Style | Single Pole |
| Temperature Range | -66°C (-87°F) to 65°C (150°F) |
| Terminal Type | Zinc Die-Cast Plugs |
| Product Category | Cable Assembly |
Interchanges & Equivalent parts:
| 81-2115 |
| 234625-PI |
| 590264 |
| 700-29-471 |
| 7BTG522MGTEC |
| 7BTG522MWTEC |
| BE27069M1D |
| EL21415 |
| PHI234625 |
| PHL23-4625 |
| PHL234625 |
| PHM 23 4625 |
| RC EC151 |
| 1010196 |
| 421146 |
| 7BTG522MW |
| BE27069 |
| 234625 |
| 23-4625 |
