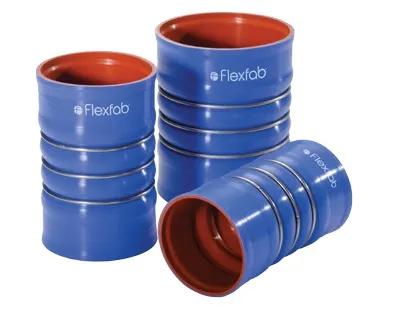

CAC Hose Connector, L: 6 in, ID: 4-1/2 in, Blue
#FLX4075-0002
Features & Benefits
- Designed to meet the EPA 2007 and EURO IV & V requirements for reduced emissions
Specifications
| Application | Hot or Cold Side: Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold. Duraguard: Used on diesel engines to deliver pressurized intake air to the charge air intercooler and intake manifold. Fluorocarbon lining eliminates closed crankcase vapors from permeating through the sidewall of the intercooler connection bellows at 500°F (260°C) |
| Color | Blue |
| Convolutes (Humps) | 2 |
| Inside Diameter 1 (in) | 4-1/2 in (11.43 cm) |
| Inside Diameter 2 (in) | 4-1/2 in (11.43 cm) |
| Length | 6 in (15.24 cm) |
| Maximum Pressure | 60 psi (4.14 bar) |
| Outside Diameter | 4-47/64 in (12.01 cm) |
| Stainless Steel Ring | 3 |
| Style | 4-Ply |
| Temperature Range | -65°F @ 500°F (-54°C @ 260°C) |
| Thickness | 7/64 in - 5/32 in (0.28 cm - 0.41 cm) |
| Type | Hot or Cold Side: 4-Ply Heavy Duty Silicone Coated Meta-Aramid Fabric with Heavy Duty Stainless Steel Pressure Retention Rings. Duraguard: 4-Ply Heavy Duty Silicone Coated Meta-Aramid Fabric with Heavy Duty Stainless Steel Pressure Retention Rings High temperature fluorocarbon elastomeric liner |
Interchanges & Equivalent parts:
| 4075-0002 |
| FLX4075-0002D |
