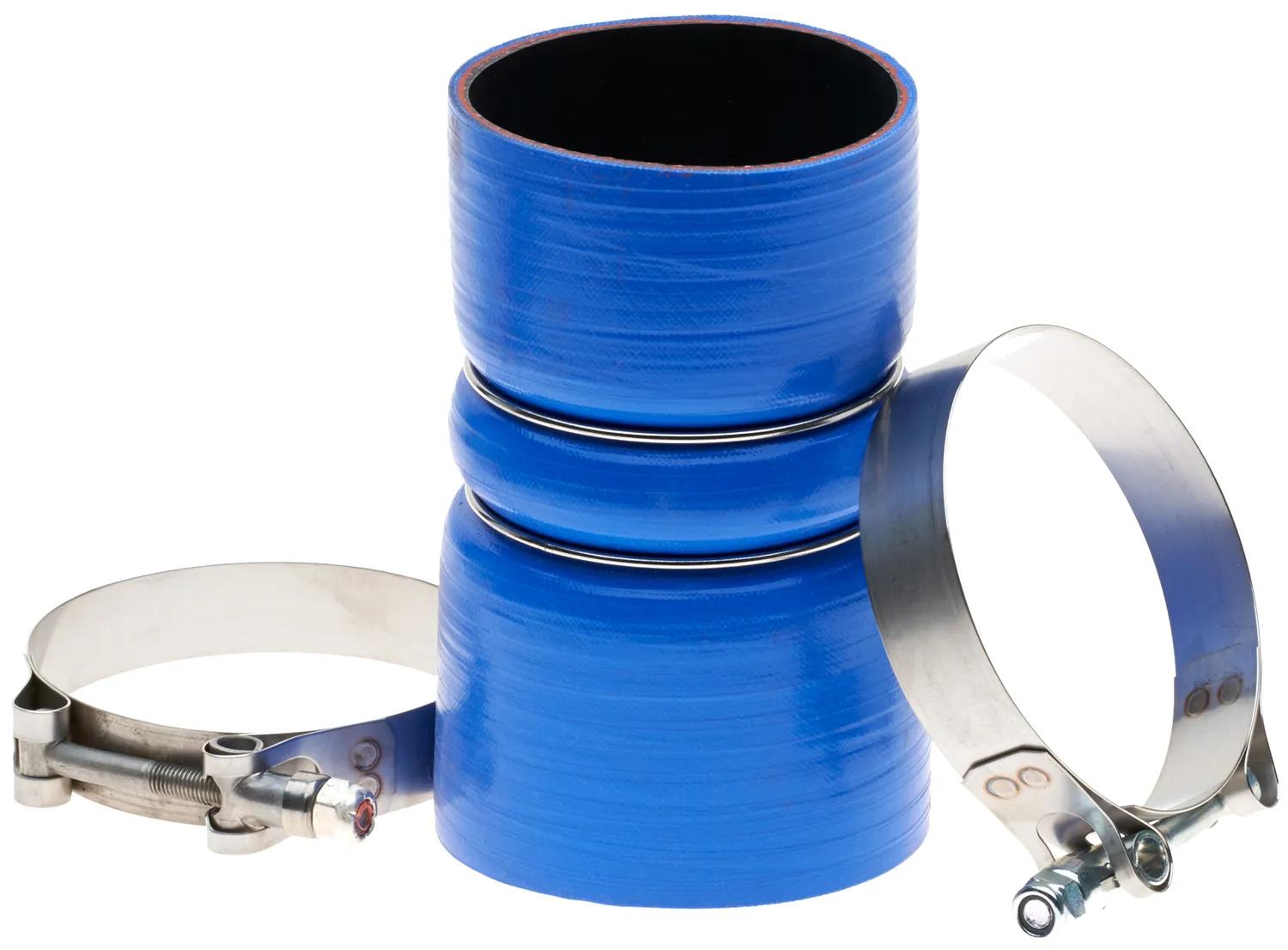

CAC Hose Kit, L: 5-1/2 in, DI: 3 in, Blue
#GAT26217
Product Overview
Turbocharger Hose Kits Offer the Convenience of a Complete Solution in 1 Kit.
Features & Benefits
- The 301 Stainless Steel Band & Bridge Resist Corrosion Better Than Carbon Steel Bands.
- High Quality Silicone Cover Provides Superior Service Life & Excellent Heat Resistance - Up to 500 Deg F (260 Deg C).
- Specially Formulated Fluoroelastomer Liner Prevents Oil Seepage & Acts as a Barrier to Hydrocarbons & Exhaust Gasses- Reducing Downtime & Providing Superior Service Life.
- Meta-Aramid Reinforcement Provides Flexibility & Strength for Long Life in Demanding High Temperature Applications.
- T-Bolt Clamps Provide Higher Torque for Better Sealing Over Traditional Worm Gear Clamps, Particularly in High Vibration Conditions.
- T-Bolt Clamps Provide Higher Clamping Force, have a 301 Grade Stainless Steel Band w/ Fully Rounded Edges to Prevent Hose Damage.
- T-Bolt Clamps also have a Nut to Minimize Loosening.
- Not Only Are All the Parts Included, But the Turbocharger Hose Features a Construction Far Superior to the Original Equipment Manufacturer (OEM) Equivalent.
- Silicone Hose & 2 T-Bolt Clamps All in 1 Package Provides Convenience.
Specifications
| Bolt Type | 1/4 in-28 Plated Steel Male Pipe Thread |
| Clamping Range Minimum | 3 à 3.99 po |
| Clamp Range Maximum | 3 à 3.99 po |
| Color | Bleu |
| Includes | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| Inside Diameter 1 (in) | 3 po (7,62 cm) |
| Inside Diameter 2 (in) | 3-19/64 po (8,38 cm) |
| Length | 5-1/2 po (13,97 cm) |
| Maximum Torque Rating (IN/LBS) | 75 in-lb |
| Nut Type | 7/16 in Hex-Head |
| OE Comparison Rating | OE Improved |
| Ring 1 Qty | 2 |
| Size | 3-1/8 po @ 3-7/16 po |
| Width | 3/4 po (1,91 cm) |
Interchanges & Equivalent parts:
| 6C2Z6C640DA |
| 26217 |
| 85128 |
| 6C246C640BA |
| 6C2Z 6C640 DA |
| 8C346W651BC |
| 8C3Z 6W651 A |
| 8C3Z6W651A |
| 904-241 |
| 4C2Z 6C640 CA |
| R85128 |
| 904241 |
| 4C2Z6C640CA |
