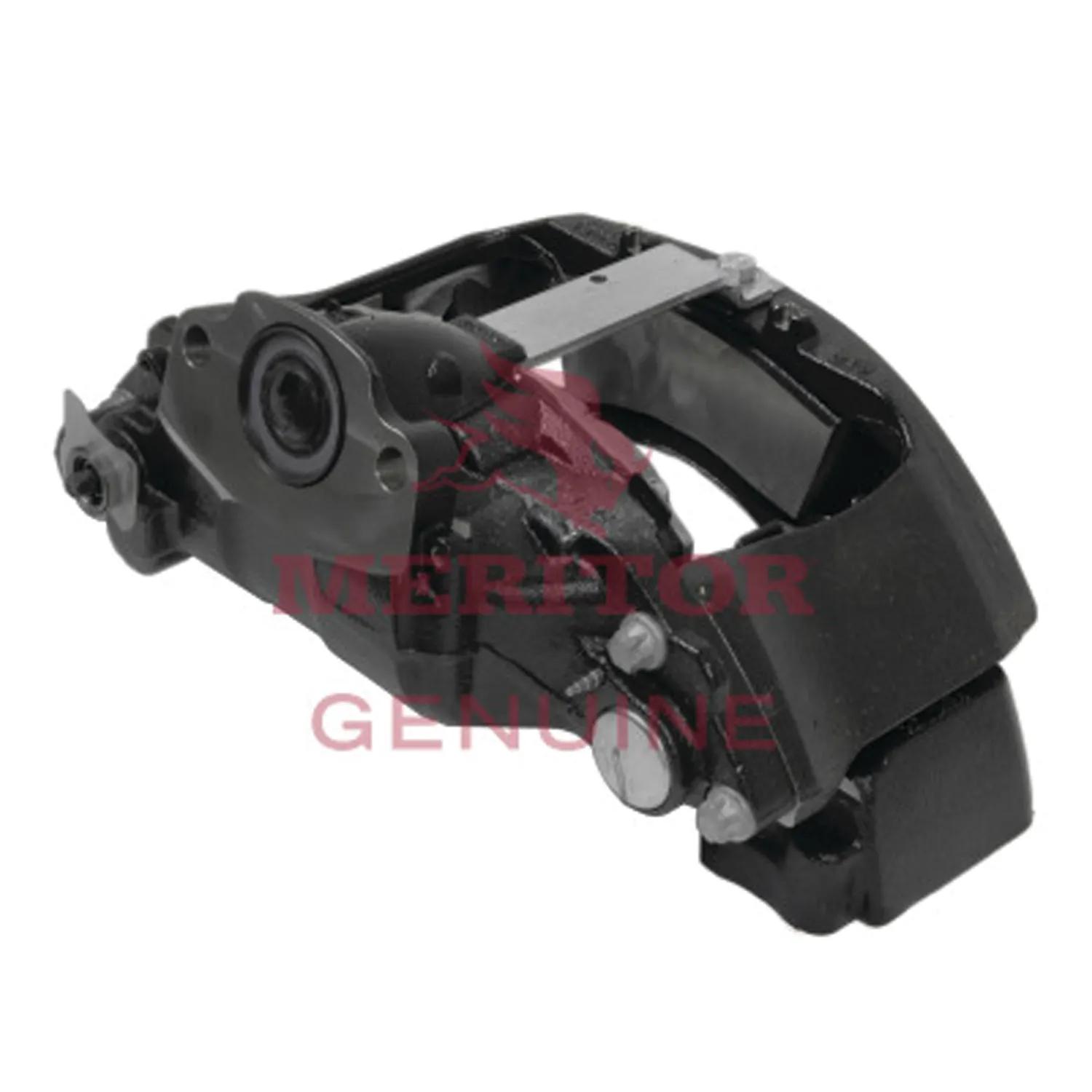

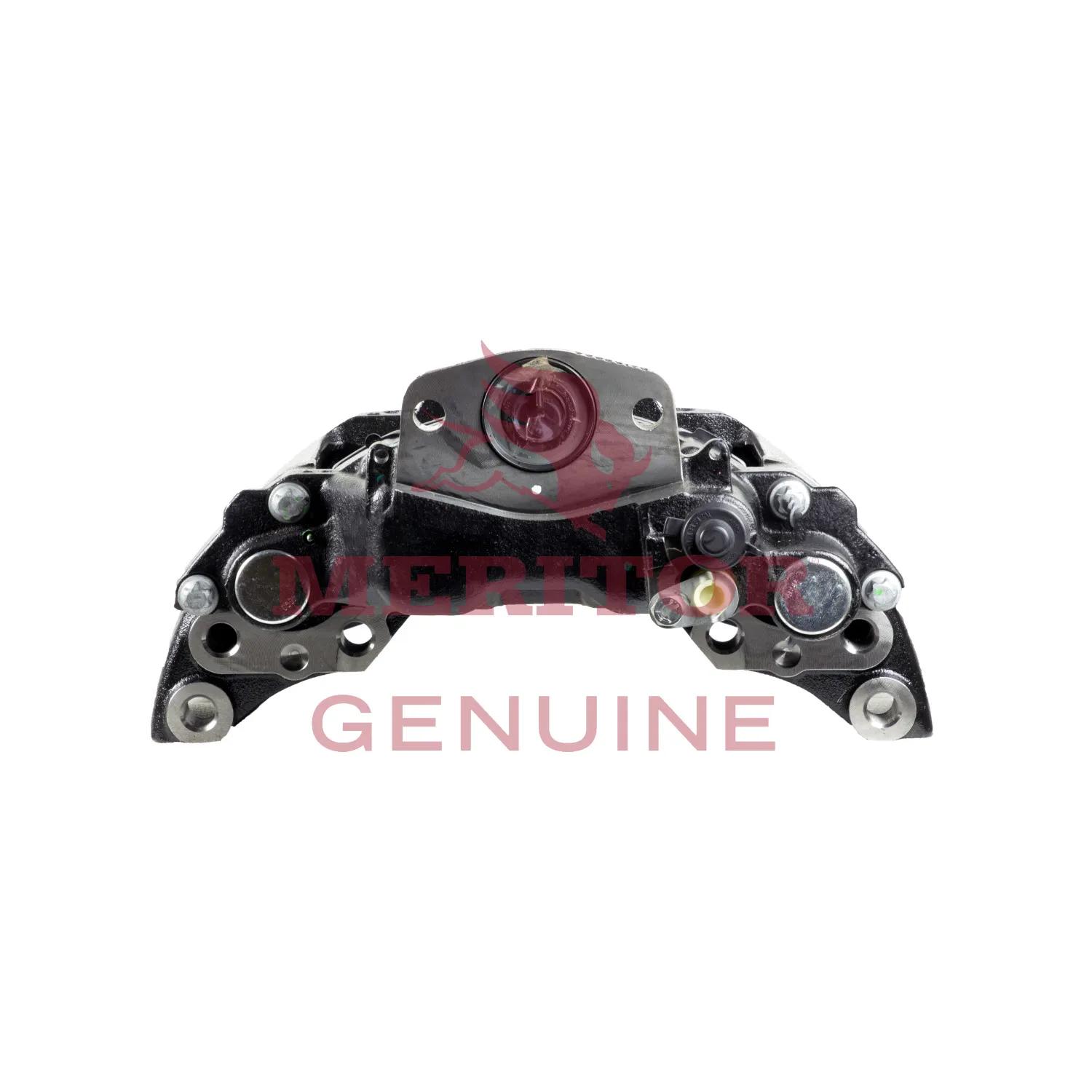

Caliper, Air Disc Brake, New, Right Side
#ROCEX225H201XX000
Product Overview
Meritor’s air disc brake caliper offers unparalleled stopping performance, optimized rotor wear, and easier maintenance. Its versatile design makes it suitable for a wide range of applications.
Features & Benefits
- Synchronized adjustment system ensures proper clearance between rotor and pad
- Heavy duty seals provide superior protection from dirt and other contaminants
- Backed by hours of performance testing under real-world conditions
- Engineered to allow for faster pad changes and minimize downtime
- Specially designed bushings reduce the risk of caliper seizing
Specifications
| Application | Service Caliper Less Pads/Less Brake Chamber |
| Caliper Type | Air Disc Brake |
| Height | 12 in (30.48 cm) |
| Length | 19-1/2 in (49.53 cm) |
| Model | EX225H |
| Mount | Axial |
| New or Remanufactured | New |
| Numbers Of Pistons | 2 |
| OE Mfg. | Meritor |
| Pallet Quantity | 8 |
| Right or Left Side | Right |
| Type | Axial |
| Unit Pack | 1 |
| UPC | 680502366998 |
| VMRS Code | 013-013-001 |
| Weight | 88 kg (194.01 lbs) |
| Width | 19-1/2 in (49.53 cm) |
Interchanges & Equivalent parts:
| 04-01-1114 |
| TDAEX225H201XX000 |
| ABP N42A A225H201 |
| EX225H201XX000 |
