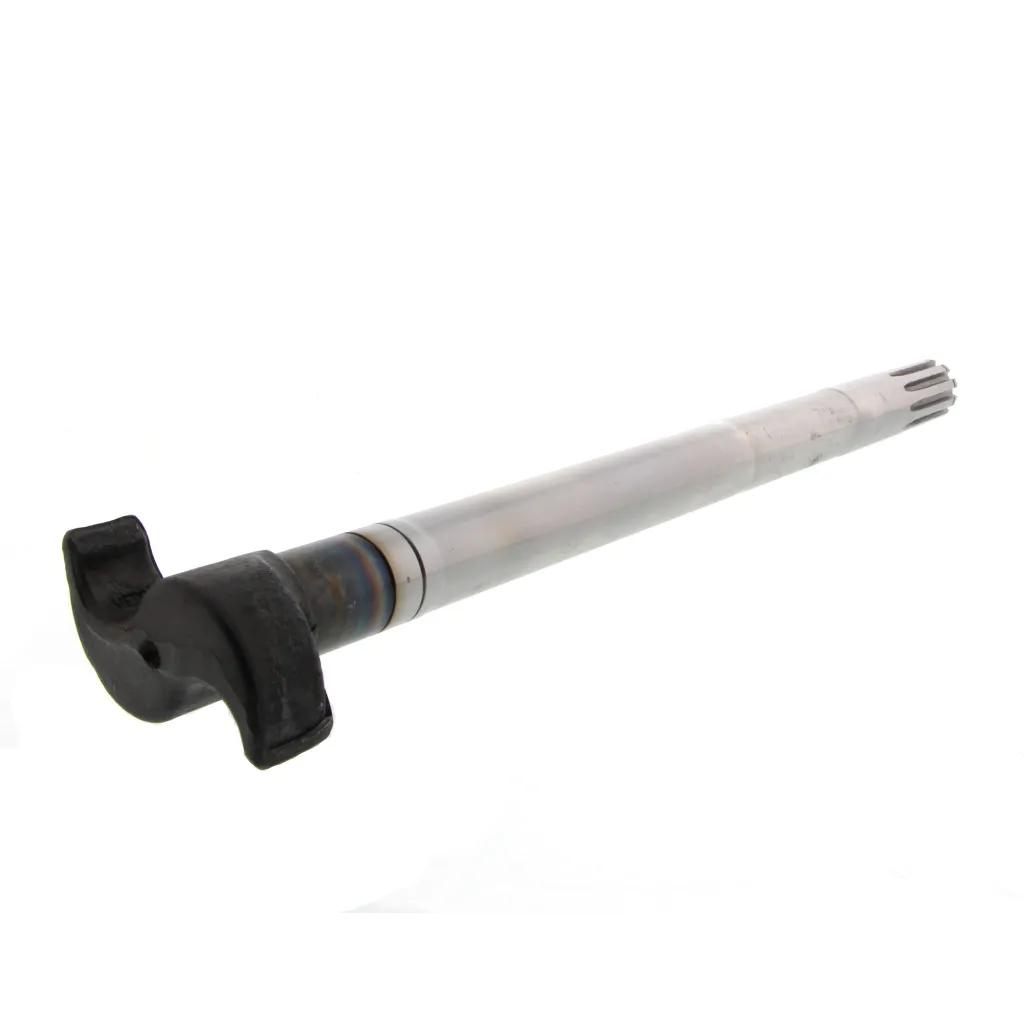

CAMSHAFT
#ROC2210N2484
Features & Benefits
- For slight variations in length. extra spacer washers may be required.
- Q Plus?Ö cams can be used to replace the standard Q style cams; however. a Q style cam cannot be used to replace a Q Plus?Ö cam.
Specifications
| Brake Type | Meritor Q |
| Bushing Journal Length (in.) | 2-1/4 in (5.72 cm) |
| Camshaft Length | 20-7/16 in (51.92 cm) |
| OE Mfg. | Meritor |
| Right or Left Side | Left |
| Spline Diameter | 1-1/2 in (3.81 cm) |
| Spline Diameter-Spline Count | 1-1/2 in - 10 |
| Splines | 10 |
| Length Range | 20 to 20.99 in |
Interchanges & Equivalent parts:
| 202100-Y3-205L |
| 17-581 |
| 202100-205-LH |
| 202100-205L |
| 219316 |
| 2210-F-5414 |
| 2210-G-3595 |
| 2210-N-2484C |
| 2210N2484-RI |
| 41422009 |
| 4572042 |
| 580443 |
| 68031 |
| 7-5-63 |
| 7-5-64L |
| 700-17-237 |
| 76103-5011 |
| 761035010 |
| 8235-2210N2484 |
| ATI2210N2484 |
| C425 |
| C425L |
| CS1425A |
| CS41506 |
| E-1425A |
| E1425 |
| E1425LH |
| E557 |
| GD562L |
| GD565L |
| KBP5593 |
| L174 |
| M-562L |
| M-565L |
| M16WK111-5 |
| M16WK1115 |
| M16WKL10203 |
| M562L |
| NL1318 |
| SIRC425L |
| TDA 2210N2484 |
| TDA2210N2484 |
| TP1165 |
| TP508 |
| 65382 |
| 72411 |
| 72412 |
| M16WK102-17 |
| M16WK103-17 |
| WA05-5001 |
| ZZCS41506 |
