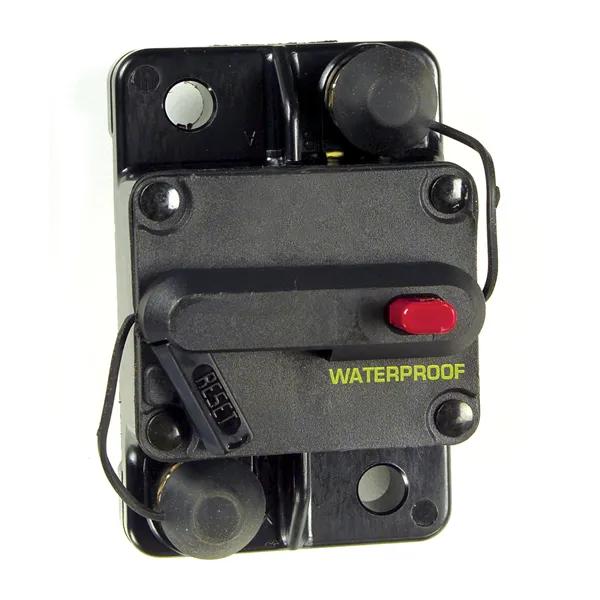

Circuit Breaker, Type III, Thermal Trip, 50 Amp, Single Pole, Surface Mount
#GRO82-2247
Product Overview
Our high amperage thermal circuit breakers range from 40A to 200A. These circuit breakers are designed to protect your vehicle's electrical system from overcurrent, overload, and short circuit situations. All products in this category are waterproof.Circuit Breaker, Type III, Surface Mounting, Manual Reset, Stud Termination, Thermal Trip, Black, Thermoplastic, 50 A Current Rating, 1 Poles, -40 to 85 deg C Operating Temperature, UL Listed, SAE J1625, SAE J1171 Standards, 1/4-28 NPT Stud, 42 VDC, 1 Year Warranty, For Trucks, Buses, RV and Marine
Features & Benefits
- Can be used in auxiliary and accessory circuits; trucks, buses, RV and marine applications
- Also used as battery chargers and DC audio systems
- Stud insulators provided; 1/4” – 28 thread studs
- Thermoplastic; UL Rated 94V – 0 housing
- Surface Mount, Type III; Single Pole
Specifications
| Application | Trucks, Buses, RV and Marine |
| Material | Thermoplastic |
| Type | Type III |
| Color | Black |
| Current Rating | 50 A |
| Mounting Type | Surface |
| Number of Poles | 1 |
| Operating Temperature | -40 to 85 deg C |
| Reset Type | Manual |
| Standards | UL Listed, SAE J1625, SAE J1171 |
| Stud Size | 1/4-28 NPT |
| Termination Type | Stud |
| Trip Type | Thermal |
| Voltage Rating | 42 VDC |
| Warranty | 1 Year |
| Product Category | Circuit Breaker |
| Quantity | 1 |
Interchanges & Equivalent parts:
| 82-2247GR0 |
| 7376-822247 |
| 82-2247GRC |
| 566432 |
| 7709338 |
| 7822261 |
| 782-2126 |
| 782-2134 |
| 7822248 |
| 82-2247 |
| 7823044 |
| 822247 |
| 11-3400 |
| 11-5110 |
| 2-1453 |
| 6102C |
