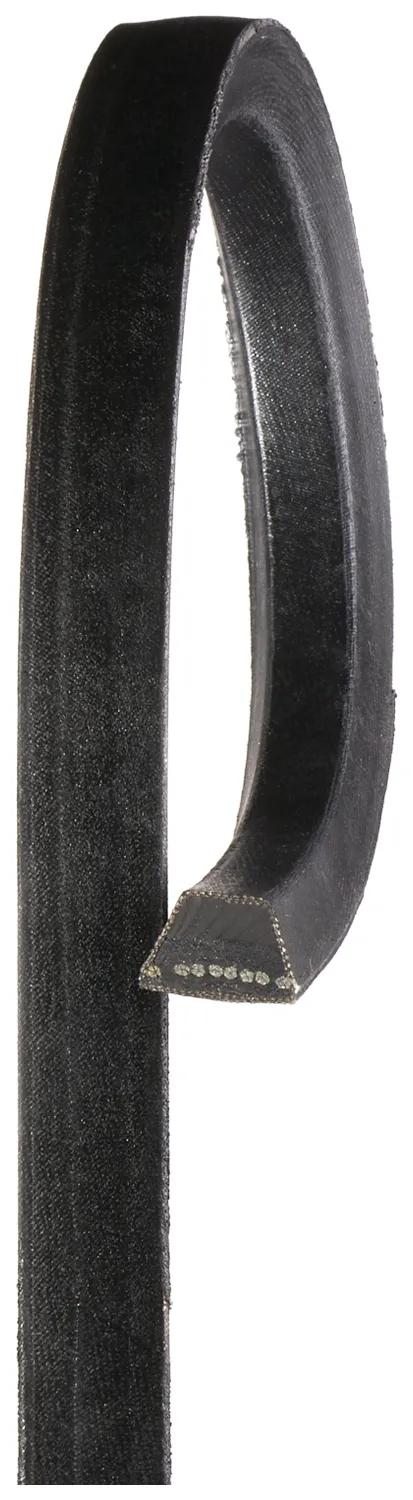

Classical Section Wrapped V-Belt, W: 1-1/2 in
#GATE390
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 1-1/2 to 1-5/8 in (3.81 to 4.14 cm) |
| Construction | Wrapped |
| Length | 394 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | E |
| Length Range | 350 to 400 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 1-1/2 in (3.81 cm) |
Interchanges & Equivalent parts:
| 107140 |
| 69390 |
| E390 |
| EP390 |
| IE390 |
| 41011073 |
| 99407364 |
| 90062390 |
