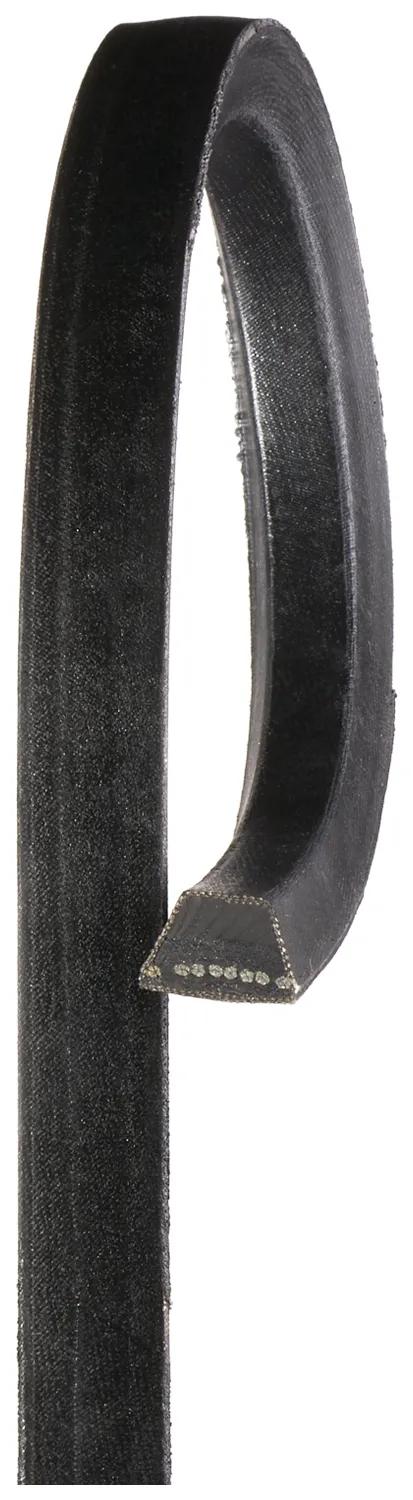

Classical Section Wrapped V-Belt, W: 1-1/4 in
#GATD112
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 1-1/4 to 1-3/8 in (3.18 to 3.51 cm) |
| Construction | Wrapped |
| Length | 117 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | D |
| Length Range | 110 to 119.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 1-1/4 in (3.18 cm) |
Interchanges & Equivalent parts:
| 30A3049 |
| 548081 |
| 588723R2 |
| 668057R1 |
| 670144R1 |
| 68112 |
| AD112 |
| AH19551H |
| D112 |
| F20712 |
| ID112 |
| AH19551 |
| 41011009 |
| 99407299 |
| DP112 |
| RD112 |
| A-D112 |
| 90052112 |
