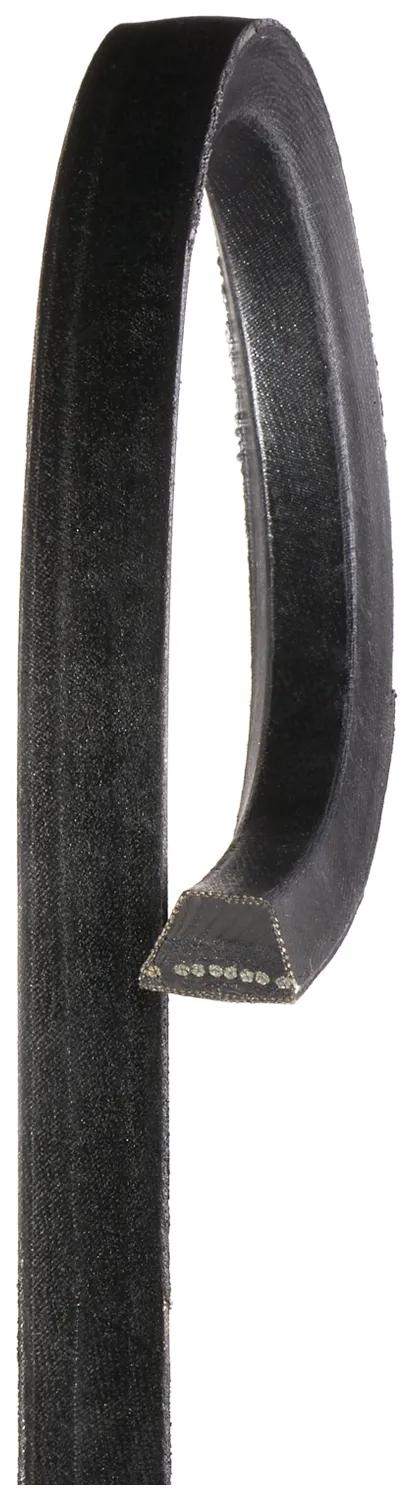

Classical Section Wrapped V-Belt, W: 1-1/4 in
#GATD158
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 1-1/4 to 1-3/8 in (3.18 to 3.51 cm) |
| Construction | Wrapped |
| Length | 163 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | D |
| Length Range | 160 to 169.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 1-1/4 in (3.18 cm) |
Interchanges & Equivalent parts:
| 107103 |
| 1117540 |
| 1125974 |
| 13C48 |
| 32C4160 |
| 68158 |
| 71117540 |
| 7142004 |
| 9810100 |
| AD158 |
| AH111519 |
| D158 |
| DP158 |
| H111519 |
| ID158 |
| 11175403 |
| A-D158 |
| A-H111519 |
| 1D158 |
| 41011021 |
| 99407311 |
| DX158 |
| RD158 |
| 90052158 |
