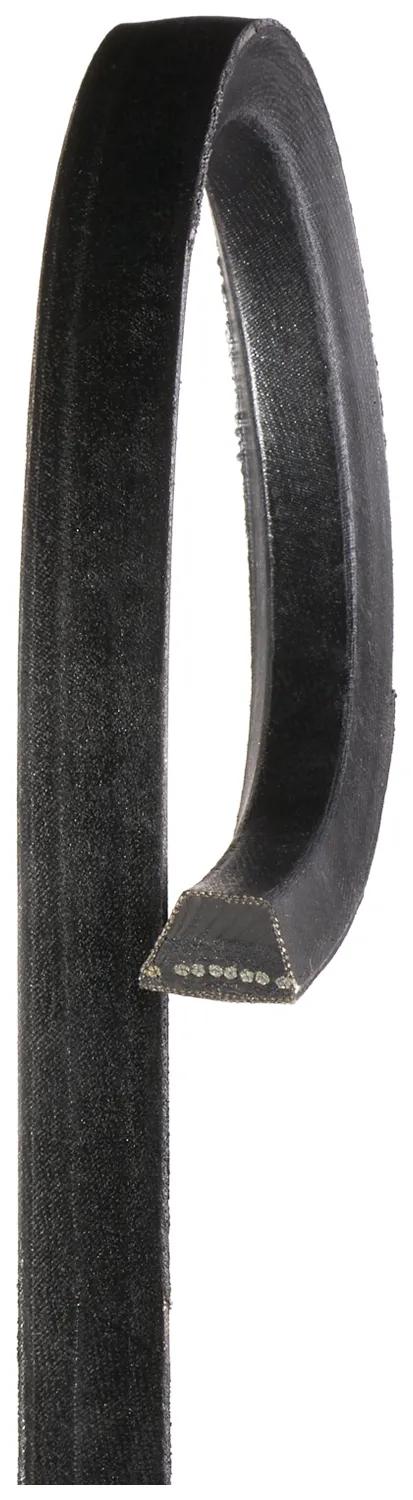

Classical Section Wrapped V-Belt, W: 1-1/4 in
#GATD420
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 1-1/4 to 1-3/8 in (3.18 to 3.51 cm) |
| Construction | Wrapped |
| Length | 423 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | D |
| Length Range | More than 400 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 1-1/4 in (3.18 cm) |
Interchanges & Equivalent parts:
| 0703724 |
| 10399 |
| 13C109 |
| 32C10760 |
| 68420 |
| AD420 |
| D420 |
| DP420 |
| ID420 |
| A-D420 |
| 1D420 |
| 41011054 |
| 99407329 |
| RD420 |
| 90052420 |
