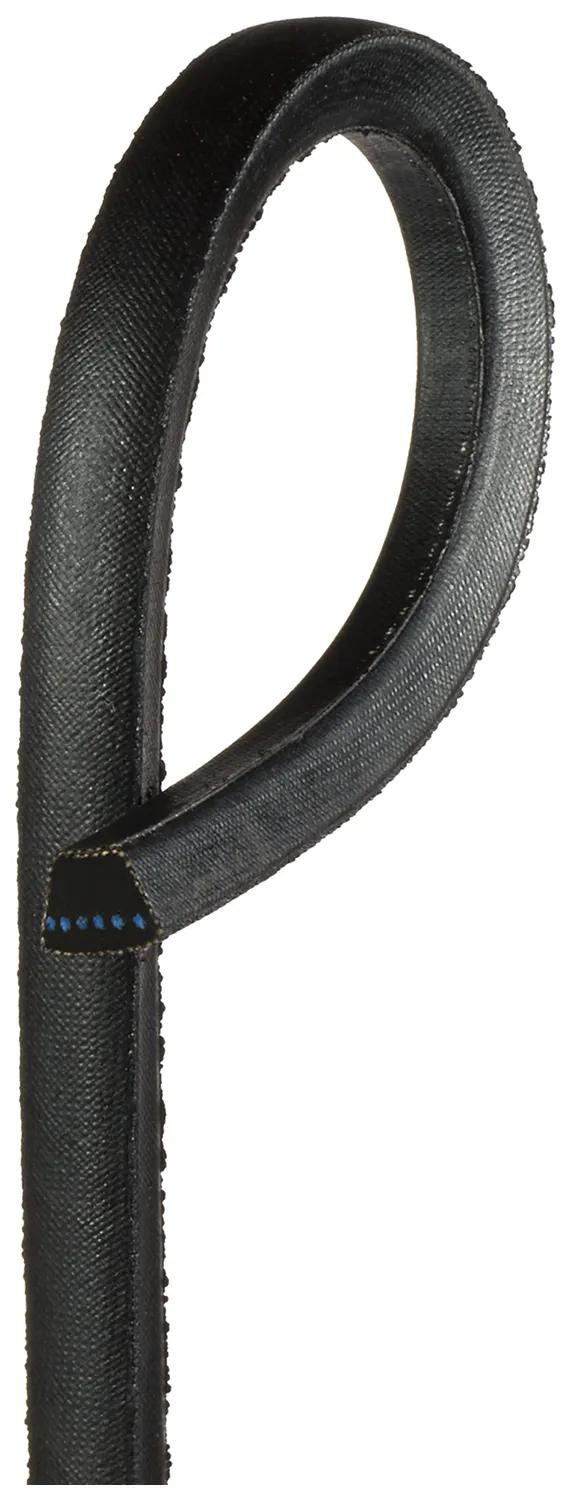

Classical Section Wrapped V-Belt, W: 21/32 in
#GATB106
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Wrapped |
| Length | 109 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | B |
| Length Range | 100 to 109.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 21/32 in (1.68 cm) |
Interchanges & Equivalent parts:
| 548862 |
| 16C2770 |
| 217699X1 |
| 258109 |
| 70548862 |
| 9124C42H42 |
| AB106 |
| B106 |
| BP106 |
| CXS72A |
| IB106 |
| LB109 |
| 79780 |
| 226488 |
| 258-109 |
| 710533 |
| 774021 |
| A-B106 |
| N274995 |
| 016259 |
| 41010691 |
| 90032106 |
