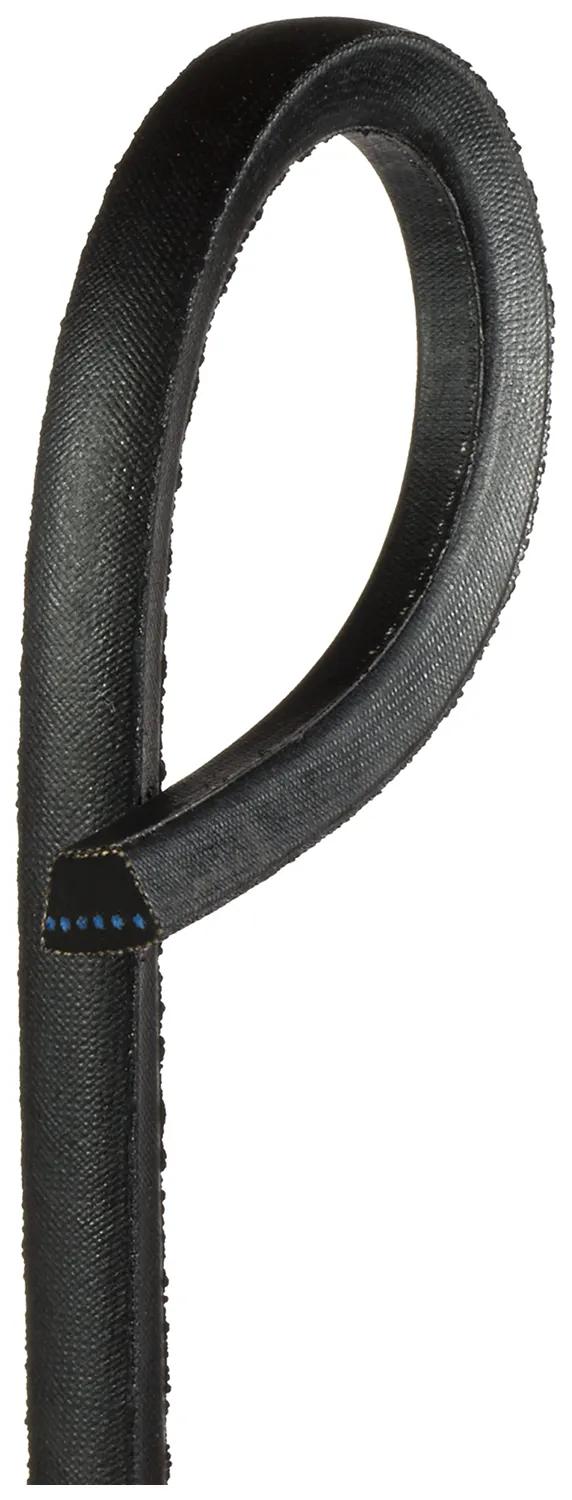

Classical Section Wrapped V-Belt, W: 21/32 in
#GATB225
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Wrapped |
| Length | 226 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | B |
| Length Range | 200 to 249.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 21/32 in (1.68 cm) |
Interchanges & Equivalent parts:
| 02010499 |
| 1015003M1 |
| 107262 |
| 1128379 |
| 1507247M1 |
| 16C5760 |
| 618040 |
| 6L225 |
| 71128379 |
| 8002 |
| A618040 |
| AB225 |
| AC7656 |
| B225 |
| BP225 |
| CO7656 |
| F8492 |
| GT2067 |
| IB225 |
| 77225 |
| 66225 |
| 5H59829A225 |
| A-618040 |
| A-B225 |
| 1B225 |
| 41010783 |
| RB225 |
| 90032225 |
