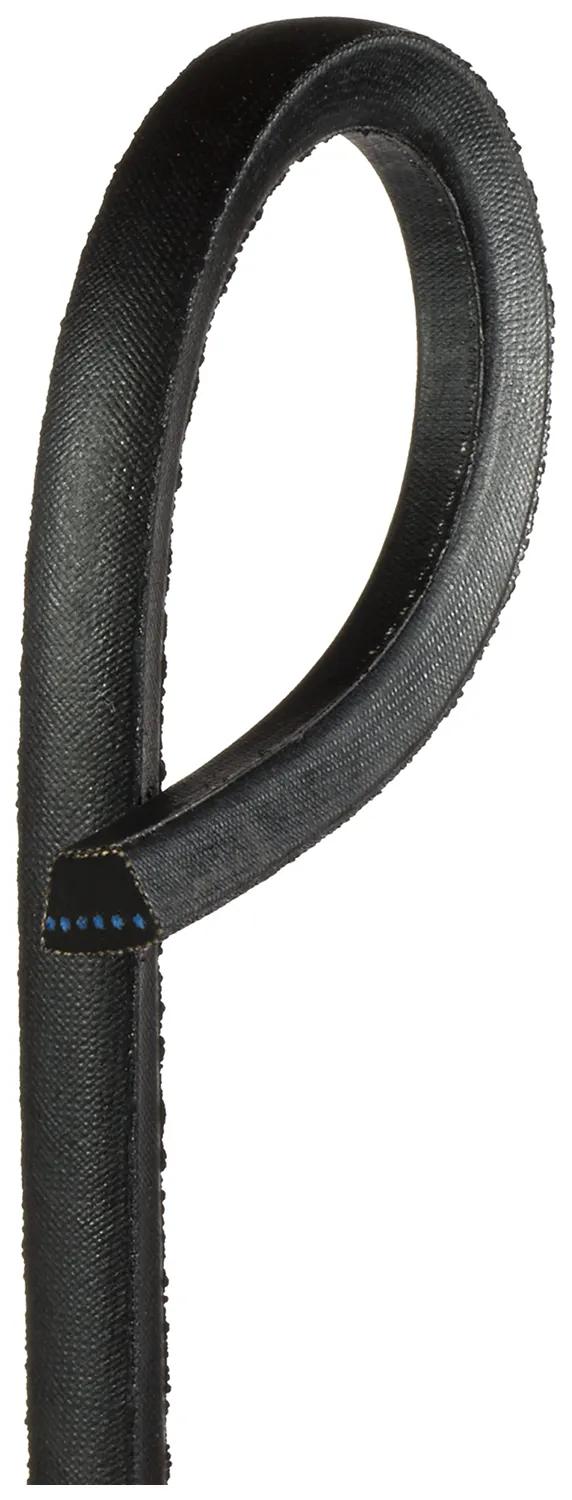

Classical Section Wrapped V-Belt, W: 21/32 in
#GATB41
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Wrapped |
| Length | 44 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | B |
| Length Range | 40 to 44.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 21/32 in (1.68 cm) |
Interchanges & Equivalent parts:
| 00047613 |
| 100138017 |
| 107280 |
| 120376497 |
| 1402PL0619 |
| 1503 |
| 16C1120 |
| 2078936 |
| 363144A |
| 66041 |
| 6A156 |
| 77041 |
| 780936 |
| 855247 |
| AB41 |
| BP41 |
| CA20518 |
| DBB41 |
| F20135 |
| IB41 |
| K505 |
| MS39256B41 |
| P47304 |
| P47304H |
| PL8002 |
| BT32 |
| B41 |
| GYIB41 |
| 03444 |
| 9952311088 |
| A-B41 |
| BG52500 |
| CR400570S |
| 41010626 |
| 78936 |
| 90032041 |
| 5L440 |
