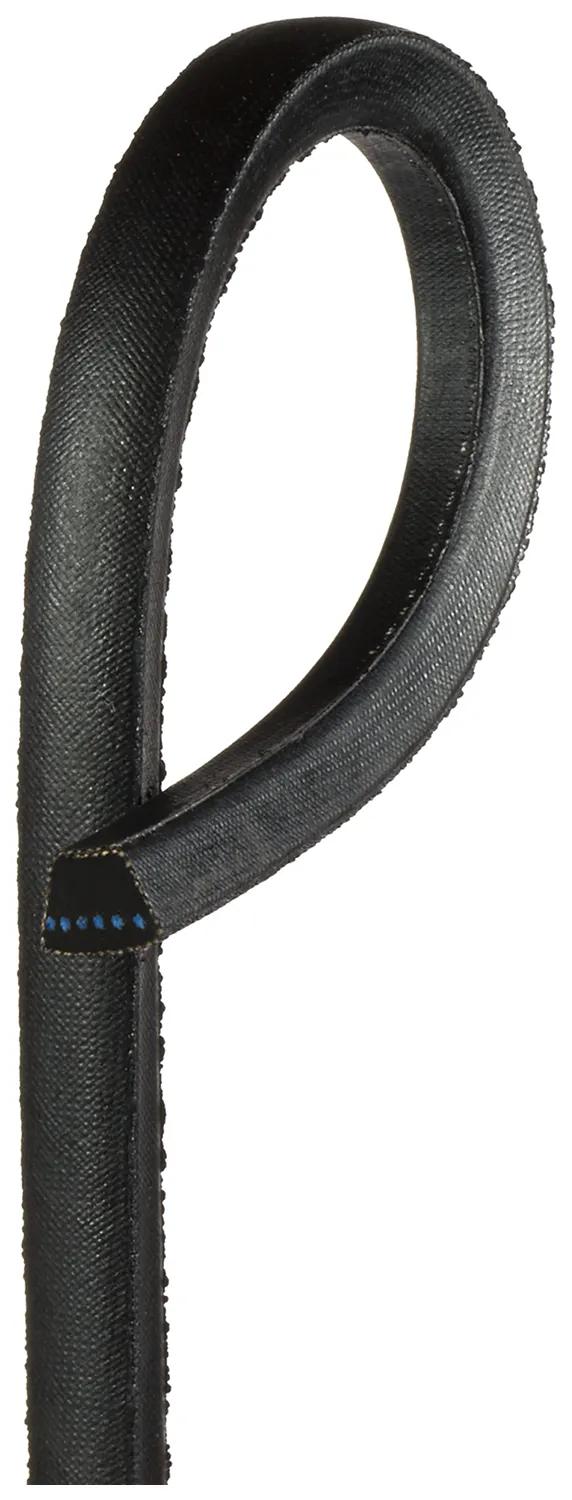

Classical Section Wrapped V-Belt, W: 21/32 in
#GATB53
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Wrapped |
| Length | 56 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | B |
| Length Range | 55 to 59.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 21/32 in (1.68 cm) |
Interchanges & Equivalent parts:
| 22CX51 |
| 0109200 |
| 0109400 |
| 02012085 |
| 021131 |
| 040047 |
| 056192 |
| 107036 |
| 1108425 |
| 1126118 |
| 11466R |
| 12900 |
| 1680R |
| 16C1420 |
| 3030002342247 |
| 312549250 |
| 35741 |
| 3X611 |
| 4642C96H26 |
| 501470 |
| 506201015 |
| 5E75 |
| 635456 |
| 66053 |
| 70501470 |
| 71126118 |
| 72025236 |
| 780161 |
| 7A53 |
| 8300 |
| 834265M1 |
| 9170C56G08 |
| 9672207 |
| 9810320 |
| 98103209 |
| 9810322 |
| A222182 |
| A312549250 |
| AB53 |
| B53 |
| BP53 |
| BXR3007 |
| CO10095 |
| GTB53 |
| H132808 |
| IB53 |
| J3170 |
| MS39256B53 |
| N31708 |
| N31708N |
| PU1062 |
| S807 |
| XH132808 |
| 77053 |
| 05014709 |
| 132650 |
| 311CB162 |
| 3430272M1 |
| 4642C86H26 |
| 5000103 |
| 500010300 |
| 575377 |
| 5H59829A53 |
| 5H59831A53 |
| 60B53 |
| 7AB53 |
| 902487 |
| 9053 |
| A-312549250 |
| A-B53 |
| B53S |
| P82894 |
| 78161 |
| 311CB |
| 90032053 |
| 5L560 |
