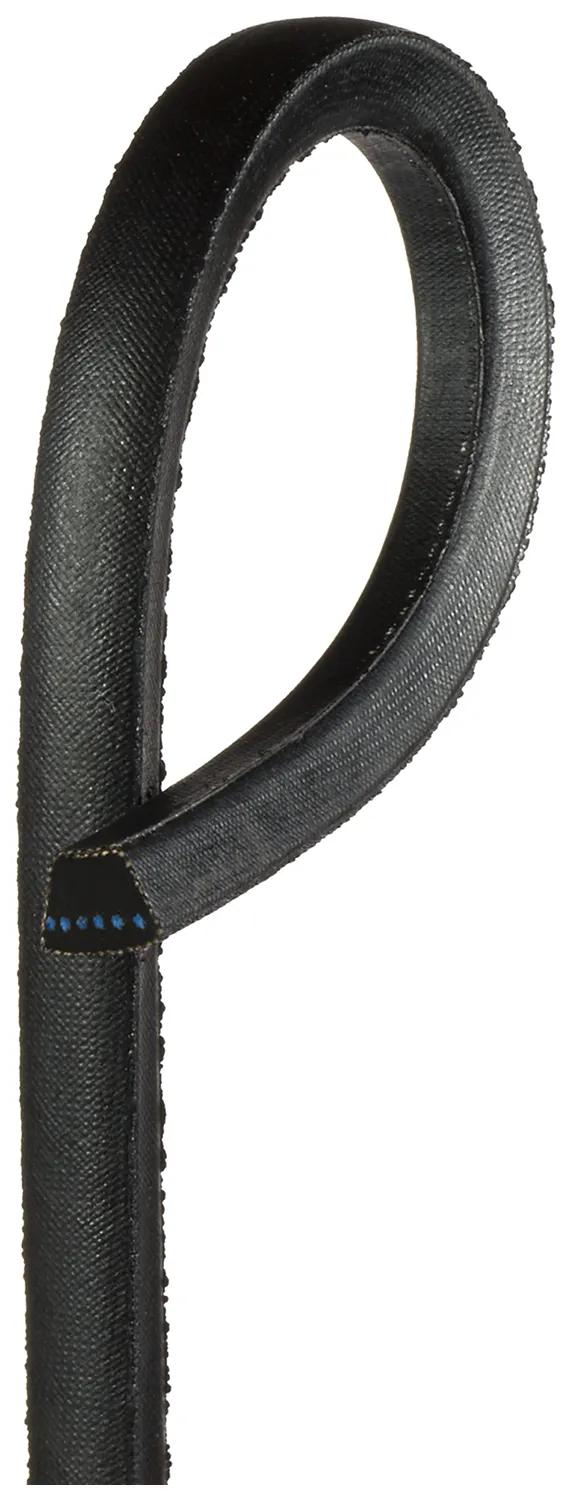

Classical Section Wrapped V-Belt, W: 21/32 in
#GATB76
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Wrapped |
| Length | 79 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | B |
| Length Range | 75 to 79.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 21/32 in (1.68 cm) |
Interchanges & Equivalent parts:
| 02215BD |
| 105053A |
| 107410 |
| 1664313 |
| 16C2000 |
| 1C6639 |
| 2500790 |
| 401397EA |
| 40207350 |
| 542304M1 |
| 66076 |
| 6A159 |
| 700709625 |
| 71394979 |
| 7543091 |
| 77076 |
| A7550 |
| AB76 |
| B76 |
| BP76 |
| IB76 |
| L1305C |
| 209 |
| 107258 |
| 107288 |
| 761722 |
| 857805 |
| A-B76 |
| 41010661 |
| 90032076 |
| 5L790 |
