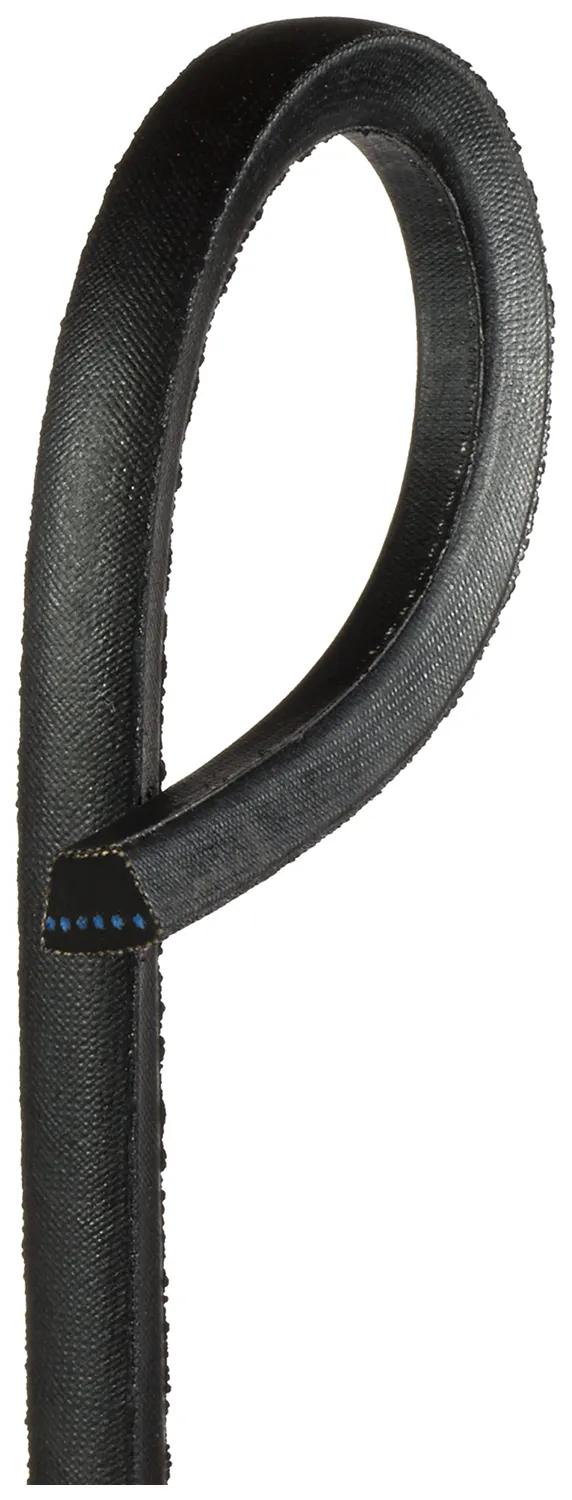

Classical Section Wrapped V-Belt, W: 21/32 in
#GATB77
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Wrapped |
| Length | 80 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | B |
| Length Range | 80 to 84.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 21/32 in (1.68 cm) |
Interchanges & Equivalent parts:
| 676448M1 |
| 6A160 |
| 71329499 |
| 74212 |
| 03480 |
| 056036 |
| 104617 |
| 107295 |
| 16C2030 |
| 170448081 |
| 221119X1 |
| 3100H |
| 3955 |
| 401397D |
| 4725I3022 |
| 66077 |
| 668902R1 |
| AB77 |
| B77 |
| BP77 |
| GN5101 |
| H668902R1 |
| H7850 |
| IB77 |
| UFT3955 |
| Z33774 |
| 77077 |
| 4725I30222 |
| 5H59831A77 |
| 5H59829A77 |
| 8770 |
| A-B77 |
| N192750X |
| 41010662 |
| RB77 |
| 90032077 |
