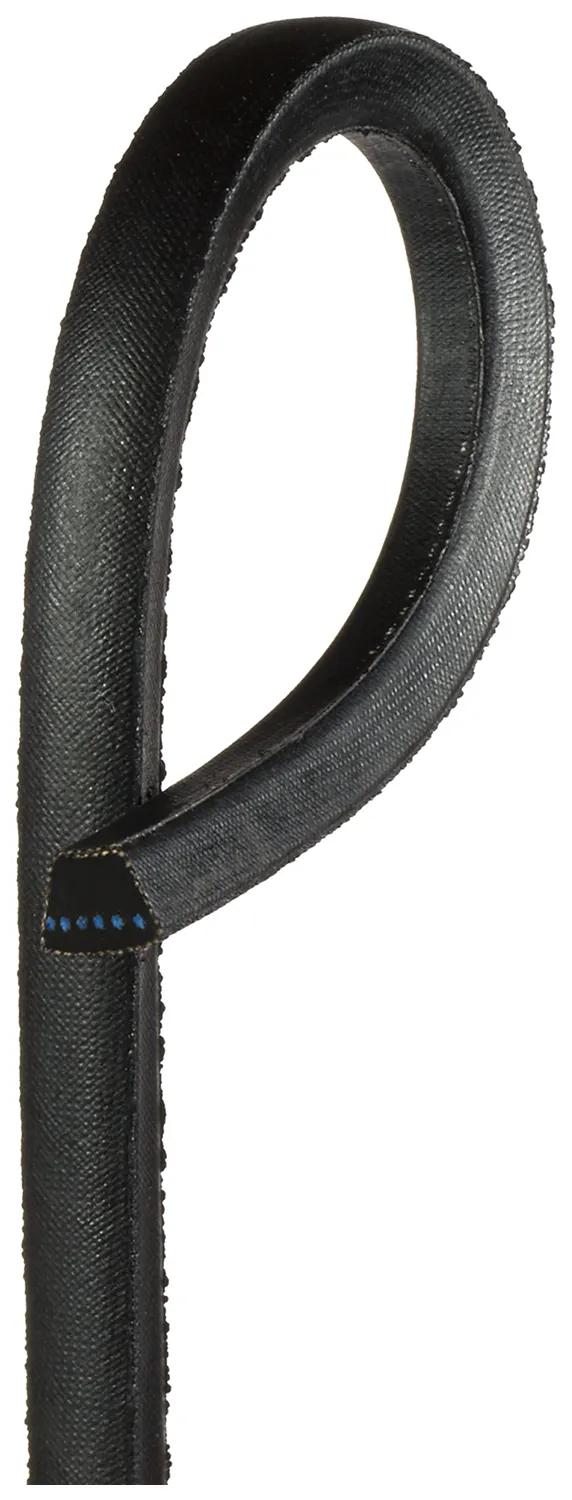

Classical Section Wrapped V-Belt, W: 21/32 in
#GATB92
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Wrapped |
| Length | 95 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | B |
| Length Range | 90 to 99.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 21/32 in (1.68 cm) |
Interchanges & Equivalent parts:
| 04050153 |
| 107940 |
| 16C2410 |
| 203052M1 |
| 3030010616627 |
| 4642C96H32 |
| 592038R2 |
| 6A165 |
| 77092 |
| 7855687 |
| 902160 |
| A71146744 |
| AB92 |
| B151 |
| BP92 |
| H21929H |
| HBX2413EL |
| IB92 |
| MS39256B92 |
| P49604 |
| R3808N |
| R64760 |
| B92 |
| 1146744 |
| 71146744 |
| 8N6700 |
| A-71146744 |
| A-B92 |
| AN194750 |
| AN194751 |
| BT4323 |
| K154331 |
| 70983 |
| 41010677 |
| 90032092 |
