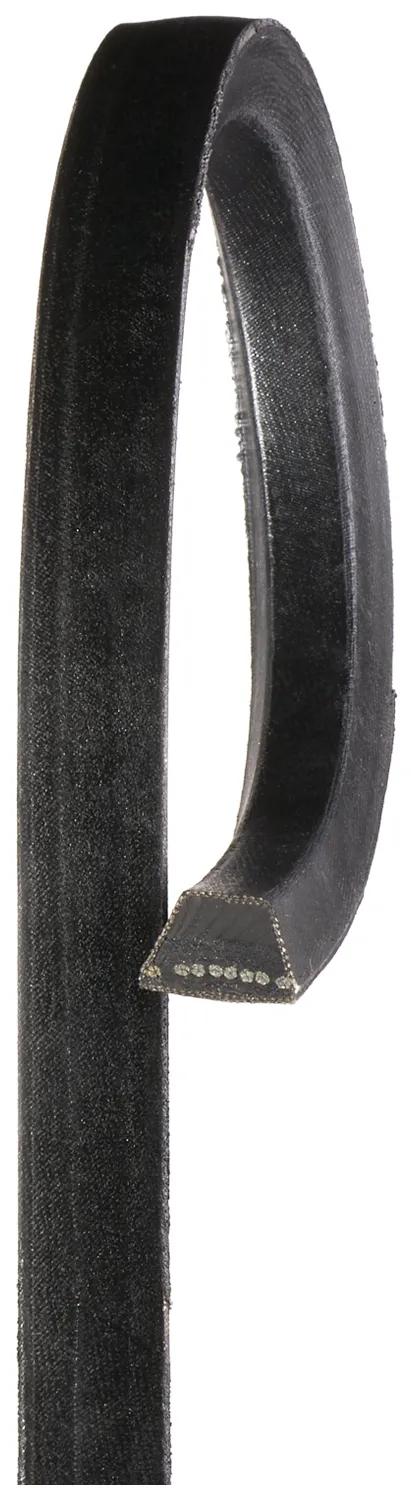

Classical Section Wrapped V-Belt, W: 7/8 in
#GATC112
Product Overview
Designed To Give Long, Dependable Service & Superior Performance On Heavy-Duty A, B, C, D & E Section Single Or Multiple V-Belt Drives.
Features & Benefits
- Also Known As Hi-Power II Belts.
- Composite Multi-Purpose Construction Reduces Flex Fatigue.
- Meets Rubber Manufacturers Association Tests For Static Conductivity.
- Superior Resistance To Oil, Heat, Ozone, Sunlight, Weather.
- Superior Length Stability Means Less Tensioning & Take-Up During Service.
Specifications
| Belt Top Width | 7/8 to 1 in (2.24 to 2.54 cm) |
| Construction | Wrapped |
| Length | 116 in |
| Material | Polyester |
| Notched | No |
| # of Grooves | 1 |
| Section | C |
| Length Range | 110 to 119.99 in |
| Type | Classical Section Wrapped V-Belt |
| Width | 7/8 in (2.24 cm) |
Interchanges & Equivalent parts:
| 01034 |
| 0145 |
| 02025467 |
| 02574HT |
| 04050185 |
| 0857482 |
| 107081 |
| 1130178 |
| 119489X1 |
| 1197880 |
| 12103B |
| 12H85 |
| 13C19 |
| 153301C1 |
| 195434M1 |
| 1R37645 |
| 20521155 |
| 216286M1 |
| 22C2950 |
| 248347 |
| 3030005290387 |
| 34X4 |
| 36123B |
| 4FH87 |
| 58417 |
| 67112 |
| 70248347 |
| 70298347 |
| 71130178 |
| 730699 |
| 7532740 |
| 78112 |
| 829413C1 |
| 855726 |
| 9810740 |
| AC112 |
| AN30712N |
| AW7532740 |
| E40574 |
| I397 |
| IC112 |
| J45 |
| K3383 |
| PC116 |
| RT3112 |
| V5116 |
| W7532740 |
| 41118 |
| C112 |
| CP112 |
| 5445 |
| 1304051C1 |
| 207BX57 |
| 3030008406295 |
| 3030009365084 |
| 31808 |
| 604805 |
| 64223 |
| A-C112 |
| A-W7532740 |
| AE14781 |
| AN30712 |
| BET37 |
| MR1884 |
| MS392573C112 |
| MS392574C112 |
| MS39257C112 |
| R968 |
| 00031397 |
| 58418 |
| MS392574 |
| 90042112 |
